ENT.46.99EP ENT Surgical Microscope
|
|
|
|
|
Specification |
|
|
|
ENT.46.99EP ENT Surgical Microscope |
| Binocular |
Straight f’=160 mm |
| Objective |
f’=220-350 mm |
| Eyepiece |
12.5x, high-eyepoint, wide angular, pupil exit distance 21mm |
| Diopter adjustment |
-5D to + 5D |
| Magnification changer |
5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x |
| Total magnifications |
2.8x, 4x, 7x, 11.5x, 17x |
| Visual field |
80 mm to 12.5 mm |
| Interpupillary distance |
55mm to 75 mm |
| Focusing |
manual |
| Working distance |
295 mm |
| ILLUMINATION |
| Type |
Coaxial illumination by optical light-guide system |
| Cold light source |
Halogen lamp, 15V/150W, twin bulbs |
| Illumination control |
Continuous by switch button on panel or brightness control knob |
| Field of illumination |
55 mm |
| Power supply |
AC 110V/220V ¨C 220W |
| Light intensity |
50,000 LUX |
| Filter |
Blue, Green |
| ARM, STAND |
| Type |
Pantographic arm, floor stand |
| Range |
1250 mm( 1st arm 500 mm, 2nd arm 550mm, 3rd arm 200 mm) |
| Rotation angle |
360 degree |
| Elevation stroke |
400mm |
| Base size |
600 mm x 600 mm |
| Weight |
95KGS |
| NOTE: Specifications subject to change without notice |
|
|
|
|
|
Optional Accessory |
|
|
|
Order NO. |
Discription of Parts |
FCA.46.HD-180 |
Binocular, 0-180 degree inclinable f’=160 mm |

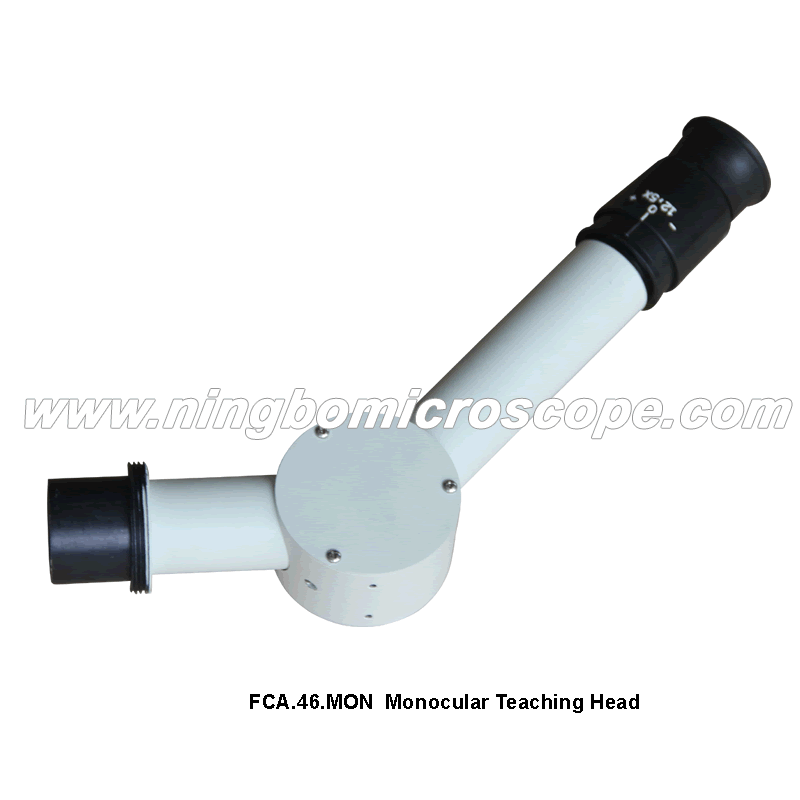

FCA.46.MON |
Monocular Teaching Head |

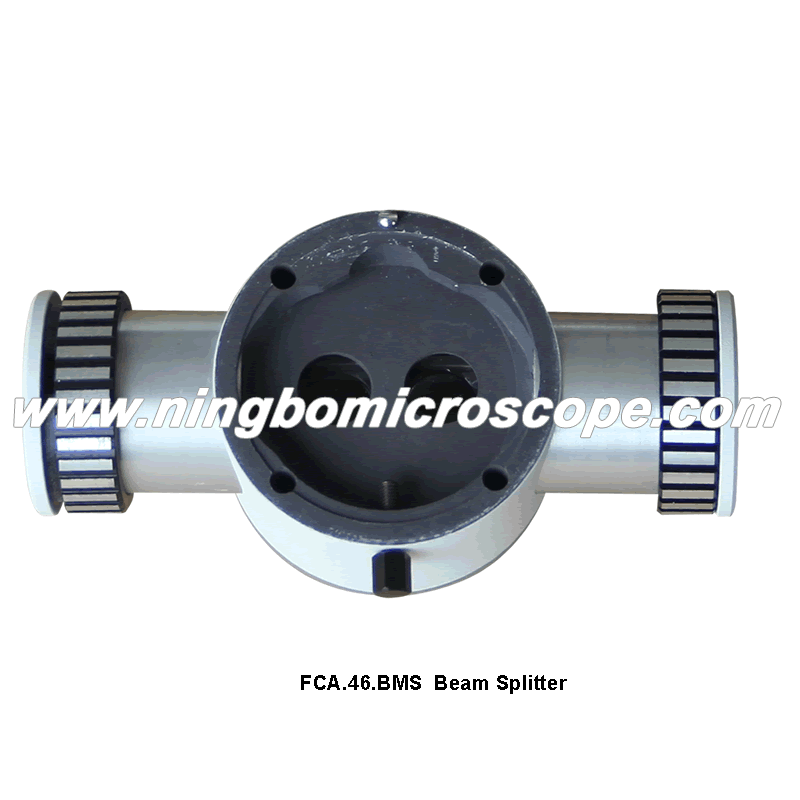

FCA.46.BMS |
Beam splitter, Dismountable, compatible with ZEISS microscope and colposcope. |

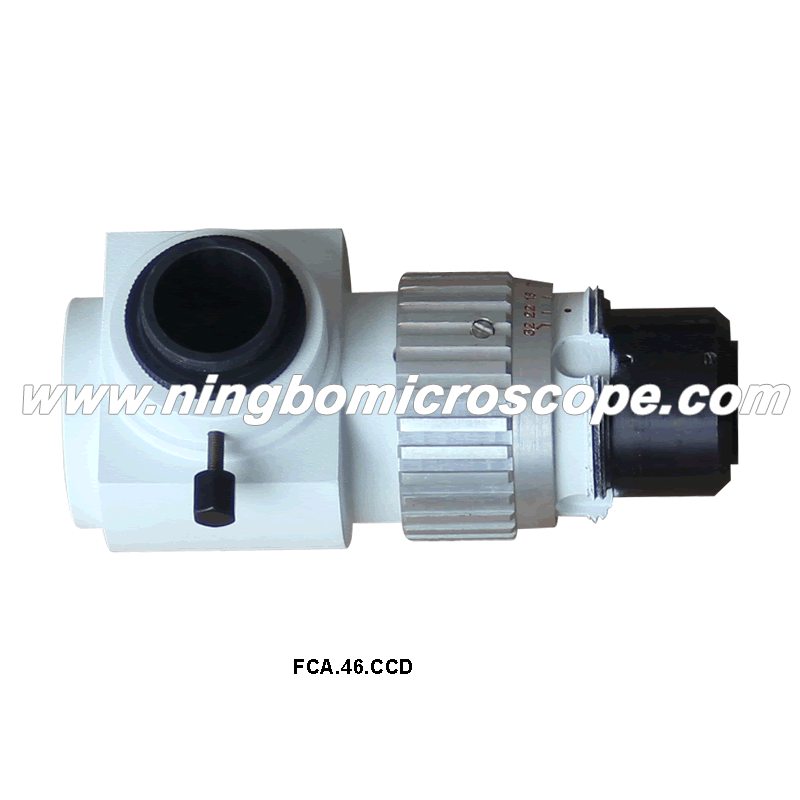

FCA.46.CCD |
CCD Adaptor With iris diaphragm, F=65 mm, compatible with ZEISS microscope and colposcope. |
OBJ.46.250 |
F=250mm |
OBJ.46.350 |
F=350mm |
OBJ.46.400 |
F=400mm |
|
|
|
|
