Description and Notes |
 |
|
 |
VID.32.01 Industry Video scope with APO objective
Features:
MPL APO Objecitive Features:
◇With Long Working Distance , Plan Apo and Big Field of View objective For Visible Light Imaging observation
◇Infinitive Optical System, Tube Lens Focal Length 200mm
◇With Long Working Distance , Plan Apo and Big Field of View objective NIR objective for Non-visible Light Imaging NIR observation (NIR= Near Infrared)
◇Parfocal Distance 95mm
◇Objective Screw thread M26X0.7
◇ Infinity optical system, the industry objectives of Nikon L300/L200/LV150/MM40L3U/MM400/MM800, OLYMPUS MX61/ MX61/BX51/BX61,Mitutoyo MF-A/MF-US/FS70,Union Hisomet and etc. is compatible.
|
|
|
|
|
Optional APO Objectives |
|
|
|
| Model No. |
Specification |
Mag. |
N.A. |
W.D.(mm) |
Focal length(mm) |
Resolution
（μm） |
Depth of
Focus±Δp(μm) |

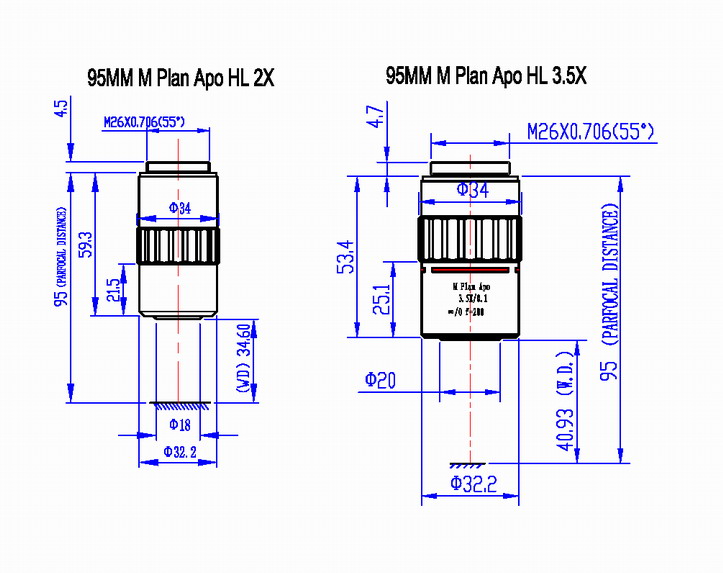

| APO2X |
2X |
0.055 |
34.6 |
100 |
5 |
91 |
| APO3.5X |
3.5X |
0.1 |
40.93 |
57.1 |
2.75 |
27.5 |

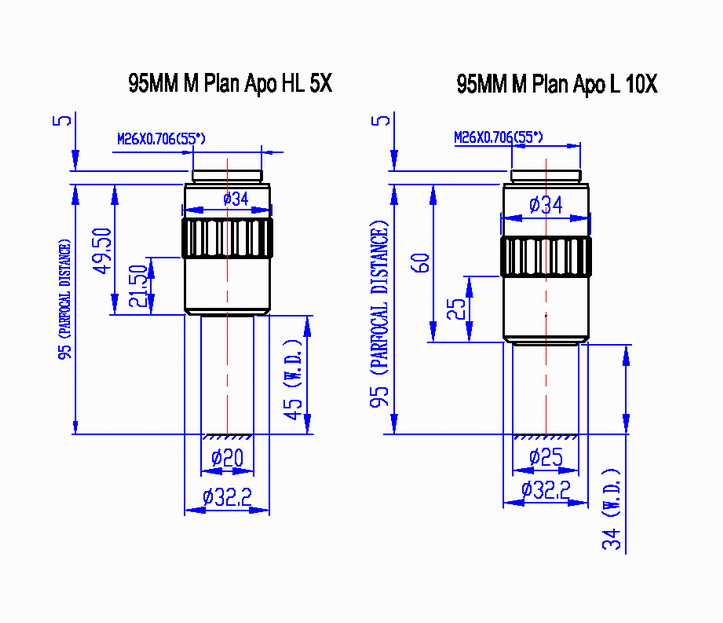

| APO5X |
5X |
0.13 |
44.5 |
40 |
2 |
16.3 |
| APO10X |
10X |
0.28 |
34 |
20 |
1 |
3.5 |

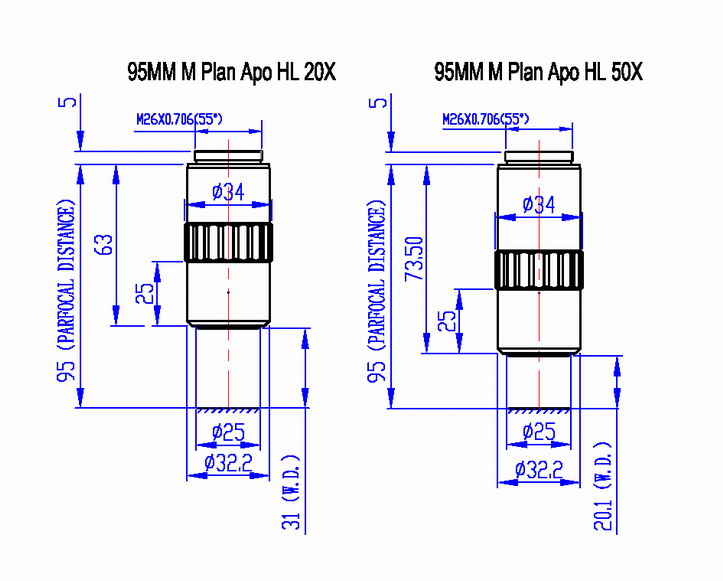

| APO20X |
20X |
0.29 |
31 |
10 |
1 |
3.3 |
| APO20X-B |
20X |
0.42 |
20.68 |
10 |
0.7 |
1.9 |
| APO50X |
50X |
0.42 |
20.1 |
4 |
0.7 |
1.6 |
| APO50X-B |
50X |
0.55 |
13.48 |
4 |
0.5 |
0.9 |
|
|
|
|
