VID.05.H670 Industry Video Microscope 0.58-7x
Description and Notes

VID.05.H670 Series Industry Video momo micrscope
1.High-resolution and high definition.
3.Available to observe diffrernt objects by using LED coaxial illumination or fiber optic illumination.
4.Wildly used in electric equipments,semi-conductor ,LCD,LED and ect.for digital image observation,inspection and measurement.
5. Mounting size for focusing mount (holder) Dia 45mm
6. Max compatible camera 1/2"
7. It can with Nikon, Olympus, Mitsutoyo standard screw thread endless far metallographical lens.
Specification
VID.05.H670 Basic Main body Specification
Main Body Zoom range 0.58X~7.0X
Objective 1X objective is included in standard set . Standard Workding Distance : 82mm(1X objective)
CCD Adapter 1x CCD adapter is included in standard set, it is CS mount, the distance between the bearing surface and CCD plate is 12.5mm
Zoom Ratio 1:12
Zoom Body Length 214.6mm
Zoom Body Diameter Body Diameter for matching focusing mount: 45mm
Order Guide
Order No.
Specification
VID.05.H670 Basic Main Body (include 1x lens and 1x CCD adapter)
VID.05.H670C Basic Main Body+Coaxial light
VID.05.H670A Basic Main Body+Fine Focusing Adjustment
VID.05.H670C-A Basic Main Body+Coaxial light+Fine Focusing Adjustment
VID.05.H670C-P Basic Main Body+Coaxial light+ Polarizing Kits
VID.05.H670D-A Basic Main Body+Click Stop+Fine Focusing Adjustment
VID.05.H670D Basic Main Body+Click Stop
VID.05.H670CD Basic Main Body+Click Stop+Coaxial light
Optional Accessory
Name of Parts
Spec.
Order No.
Objectives 0.3x WD=293mm OBJ.05.DH0.3X
0.5x WD=175mm OBJ.05.DH0.5X
0.75x WD=117mm OBJ.05.DH0.75X
1x WD=82mm (included in standard set) OBJ.05.DH1X
1.5x WD=54mm OBJ.05.DH1.5X
2x WD=35mm OBJ.05.DH2X
5x WD=10.1mm OBJ.05.DH5X
CCD Adapter 0.3x ADA.05.DHC03
0.4x ADA.05.DH-C04
0.5x ADA.05.DH-C05
0.67x ADA.05.DHC067
1.0x (included in standard set) ADA.05.DHC1X
2.0x ADA.05.DHC2X

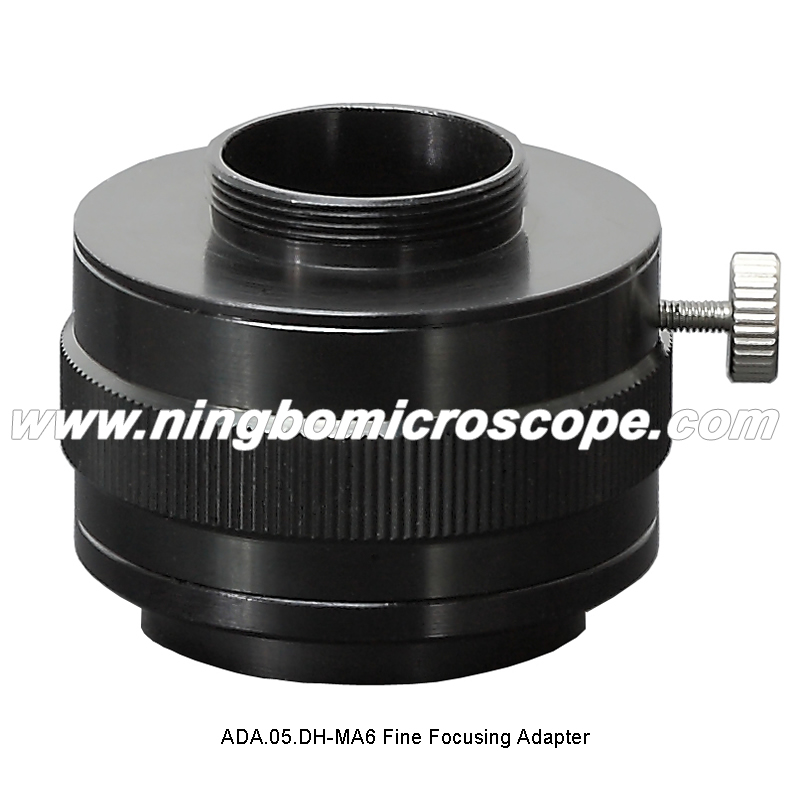

Objective Fine Focusing Adapter ADA.05.DH-MA6
Special LED Ring Light

This LED Ring Light only for Video Microscope
--3W, Brightness Adjustable
--Dia: 25mm for mounting on videscope
--46pcs LED numbers

 LGT.05.R25

This LED Ring Light only for Video Microscope
--4.5W, Brightness Adjustable
--Dia: 50mm for mounting on videscope
--96pcs LED numbers

 LGT.18.96T
Other Light source Please click here for different Light source
VGA Cameras Please click here for different VGA Cameras
AV Cameras Please click here for different AV Cameras
USB CMOS Cameras Please click here for different USB CMOS Cameras
USB CCD Cameras Please click here for different USB CCD Cameras
PAD Cameras Please click here for different PAD Cameras
Stand Please click here for different stand.
Note: when order stand, please clarify if for video scope
Optical Parameter

Objective

CCD adapter

0.4X

0.5X

0.67X

1X

1.5X

2X

0.3X

Mag.

0.07X
～0.84X

0.09X
～1.05X

 0.12X
～1.4X

0.17X～2.1X

0.26X
～3.15X

0.35X～4.2X

FOV (mm)

50X66.67
～4.3X5.7

40X53.33
～
3.43X4.57

30X40
～2.57X3.43

21.1X28.2
～
1.71X2.29

13.85X18.46
～
1.14X1.52

10.3X13.71
～
0.86X1.14

WD(mm))

293

0.5X

Mag.

0.12X～1.4X

0.15X
～1.75X

0.2X
～2.34X

 0.29X～3.5X

0.44X
～5.25X

0.58X～7X

FOV (mm)

30X40
～2.57X3.43

24X32
～
2.06X2.74

18X24
～1.5X2

12.4X16.5
～
1.03X1.37

8.2X10.91
～
0.69X0.91

6.2X8.3
～
0.51X0.69

WD(mm))

175

0.75X

Mag.

0.18X～2.1X

0.225X
～2.625X

0.3X～3.5X

0.44X
～5.25X

0.65X
～7.875X

0.87X～10.5X

FOV (mm)

20X26.67
～1.7X2.3

16X21.33
～
1.37 X1.83

12X16
～1.03 X1.37

8.2X10.9
～
0.69X0.91

5.53X7.38
～
0.46X0.61

4.1X5.52
～
0.34X0.46

WD(mm))

117

1X

Mag.

0.24X～2.8X

0.3X～3.5X

0.4X
～4.69X

0.58X～7X

0.87X
～10.5X

1.16X～14X

FOV (mm)

15X20
～1.3X1.7

12X16
～
1.03X1.37

9X12
～0.77X1

6.2X8.3
～
0.51X0.69

4.1X5.52
～
0.34X0.46

3.1X4.1
～
0.26X0.34

WD(mm))

82

1.5X

Mag.

 0.36X～4.2X

0.45X
～5.25X

 0.6X～7X

0.87X～10.5X

1.3X
～15.75X

1.7X～21X

FOV (mm)

 10X13.33
～0.86X1.14

8X10.67
～
0.69X0.91

 6X8
～0.5X0.7

4.13X5.52
～
0.34X0.46

2.77X3.69
～
0.23X0.3

2.1X2.82
～
0.17X0.23

WD(mm))

54

2X

Mag.

 0.48X～5.6X

0.6X～7X

 0.8X
～9.38X

1.16X～14X

1.7X～21X

2.3X～28X

FOV (mm)

 7.5X10
～0.64X0.86

6X8
～
0.51X0.69

 4.5X6
～0.38X0.51

3.1X4.1
～
0.26X0.34

2.1X2.82
～
0.17X0.23

1.57X2.09
～
0.13X0.17

WD(mm))

35

5X

Mag.

 1.2X～14X
 1.5X～17.5X 2.0X
～23.4X		 2.9X～35X 4.4X～52.5X 5.8X～70X

FOV (mm)

 3X4
～0.26X0.345		 2.4X3.2
～0.21X0.27 		1.8X2.4
～0.15X0.2		 1.24X1.66
～0.1X0.14		 0.82X1.09
～0.07X0.15 		0.62X0.83
～0.05X0.07

WD(mm))

10.1

Magnification range of zoom body 0.58X～7X
Optical Data
Zoom Range 0.6X~7.0X
NA 0.6X 2.0X 4.0X 7.0X
0.021 0.067 0.093 0.097
Depth of field 3.2mm 0.30mm 0.11mm 0.06mm
Resolution 16.0μm 5.0μm 3.6μm 3.5μm
TV distortion 0.32% 0.22% 0.19% 0.16%
Install dimension 0
Φ45 mm
-0.1
Fine adjustment
(choose to buy)		 0~6mm
The largest compatible camera 1/2"
CCD whorl mount 1 inch 32 button
※ The depth of field is the value of parsing images if you use 1/2" CCD camera and monitor of level 320 line.(Imaging surface concessional confusion circumference: 40μm)
※ Resolution is the theory resolution of wavelength in 550nm.
