Description and Notes |
 | |
 |
LCD.06.NB100P Digital LCD Inverted Biological Microscope, Newly designed with comfortable operating with ergonomic structure, with better illumination and LCD Pad Camera, with the excellent digital image processing technology, its imaging effect is gorgeous and can beat the image processed by CCD camera. This new generation smart digital microscopic camera is upgraded to 5megapixels resolution and 720P dynamic video record is supported. Equipped with the most stable hardware and software system,binding professional multi-functional measuring software, which is R&D by ourselves, it is easily to achieve to all your desire of exploration and discovery mystery of the microscopic kingdom.
--9.7" HD LED Backlight Screen, G-Sensor, Multi-Point Capacitance Touch Screen
--5.0M Pixels Built-in Digital Camera, Maximum Photo Resolution 2592*1936
--Infinity Optical System Supply High Quality Optical Image

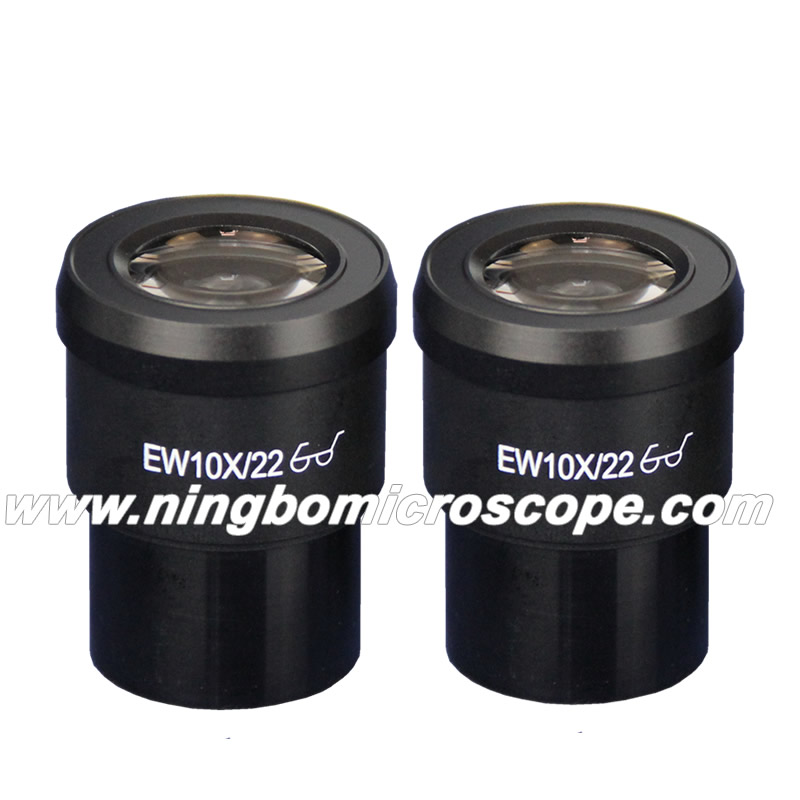

--Eyepiece EW10x/22mm, High Eyepoint
--Infinity LWD Objective 4x,10x,20x,40x
--ELWD Condenser N.A.0.3, Long Working Distance 72mm
--External Illumination, Halogen Lamp 6V30W
--Infinity Phase Contrast System Included |
|
|
|
|
Specification |
| |
|
|
Inverted Biological Microscope |
|
Model |
LCD.06.NB100P |
|
Head |
Trinocular head inclined at 30°, interpupillary 48-75mm, Binocular Tube rotatable 360 degree, |
|
PAD Camera |
Touchscreen Tablet Camera with Measuring Software |
|
Eyepiece |
High-point ,extra wide field eyepiece EW10x/22mm |
|
Infinity Plan LWD Objective |
4X/0.1,WD=18mm |
| 40X/0.6,WD=2.6mm (cover glass 1.2mm ) |
| Infinity Plan Phase Contrast Objective |
PH10X/0.25,WD=10 mm |
| PH20X/0.4,WD=5.1mm |
|
Nosepiece |
Quintuple Nosepiece |
| Condenser |
ELWD Conderser NA 0.3, LWD 72mm; (Without condersor LWD150mm) |
Phase Annulus
Plate |
10x-20, 40x phase annulus plate |
|
Stage |
Plain stage 160x250mm mm |
| Glass insert |
| Auxiliary stage 70x180mm |
|
Focusing |
Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotatio |
|
Illumination |
External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable |
|
Phase Contrast |
--Centering Telescope, Tube Dia.30mm
--Phase Contrast Slide, 2 Holes For 10x-20x Objective |
| Filter |
Blue, green and ground glass, Φ45mm | |
|
|
|
|
Optinonal Accessory |
| |
|
|
Optional Accessories |
Order No. |
|
Infinity Plan LWD Objective |
10X/0.25,WD=10mm |
OBJ.06.IPLL10 |
| 20X/0.4,WD=5.1mm |
OBJ.06.IPLL20 |
| Infinity Plan Phase Contrast Objective |
PH40X/0.6,WD 0.35mm (cover glass 1.2mm) |
OBJ.06.IPHPL40 |
| Centering Telescope |
Centering Telescope, tube ф30mm |
PHA.06.TEL |
Phase Annulus
Plate |
phase annulus plate center adjustable for PH objetive 10x,20x, 40x |
PHA.06.SL3 |
|
Stage |
Attachable mechanical stage, X-Y coaxial controll, movement range:120x78mm |
STD.06.XY |
| Terasaki holder |
STD.06.TH |
| Φ38mm Petri dish holder |
STD.06.PD38 |
| Φ54mm Slide glass holder |
STD.06.SG54 |
|
Adapter |
C-mount video adapter |
ADA.06.C1X | |
|
|
| |
