ZOM.05.S850XY Parallel Zoom Stereo Microscope 0.8-5x
Description and Notes

ZOM.05.S850XY Parallel Zoom Stereo Microscope, characterized by Galileo optical system. Magnification range of zoom body is 0.8x-5.0x, magnification from high to low non-flash in focusing course, large depth of field, long working distance, has many kinds of attachments. It can be satisfied the demands of checking-up and analysis in modern biology, medicine, environment, farming, police, micro-electronics, semiconductors etc..

Features
--Parallel zoom optical system 0.8x-5.0x, working distance 91mm.
--Zoom magnification 8x-50x(standard), extend Mag.: 2x-225x
--Plan distortion-free objective 1x
--High eye point and wide field eyepiece SWH10X(Φ23mm)
--Binocular/ Trinocular head inclined 45°, rotatable 360°, diopter adjustable ±6
--Head interpupillary distance of head adjustable from 50mm to 76mm

Specification
Model
ZOM.05.S850XY
ZOM.05.S850TXY
Mag.
8x-50x(standard), extend Mag.: 2x-225x
Head
Binocular
Trinocular
Eyepiece
High eye point and wide field eyepiece SWH10x/Φ23mm
Zoom Objective
Parallel 0.8x-5.0x, working distance 118mm.
Standard Objective Plan distortion-free objective 1x
Main Body
The measurement to match between support and main body: 76mm
STD.05.D4 Track stand+XY Stage

STD.05.D4 Track stand with top 6V10W halogen and bottom 5w fluorscent light
--Focusing range 100mm, the diameter of the center working stage is Φ95mm
--Track movment 100mm

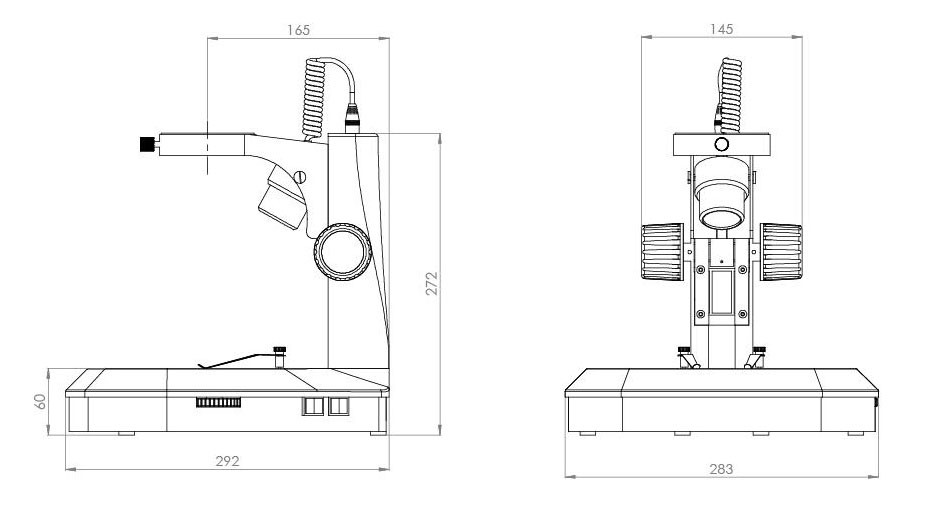

--Stand Size, please click here
--XY stage please click here

Optical System Technical Data Sheet
Eyepiece
Objective
0.5x
0.7x
1.0x
1.5x
Standard Magnification
4x-25x
5.6x-35x
8x-50x
12x-75x
5x
Mag.
2x-12.5x
2.8x-17.5x
4x-25x
6x-37.5x
FOV)
Φ55-8.8
Φ39.3-Φ6.3
Φ27.5-Φ4.4
Φ18.33-Φ2.93
10x
Mag.
4x-25x
5.6x-35x
8x-50x
12x-75x
FOV)
Φ55-8.8
Φ39.3-Φ6.3
Φ27.5-Φ4.4
Φ18.33-Φ2.93
15x
Mag.
6x-37.5x
8.4x-52.5x
12x-75x
18x-112.5x
FOV)
Φ42.5-Φ6.8
Φ30.36-Φ4.86
Φ21.25-Φ3.4
Φ14.17-Φ2.27
20x
Mag.
8x-50x
11.2x-70x
16x-110x
24x-150x
FOV)
Φ35-Φ5.6
Φ25-Φ4
Φ17.5-Φ2.8
Φ11.67-Φ1.87
30x
Mag.
12x-75x
16.8x-105x
24x-150x
36x-225x
FOV)
Φ22.5-Φ3.6
Φ16.1-Φ2.57
Φ11.25-Φ1.8
Φ7.5-Φ1.2
Working Distance(mm)
186
135
91
40
Optional Accessories
Eyepiece WF15x/17mm
WF20x/14mm
WF30x/9mm
WF10x with micrometer 0.1mm
Auxiliary Objectives 1.0x, plan
0.5x, achromatic
0.7x, achromatic
1.5x, achromatic
CCD Adapter
C0.5, CCD adapter 0.5x
C1.0, CCD adapter 1.0x
DT01, digital camera adapter
PT01, photo adapter
CDM1.0, CCD adatper 1.0x with micrometer
Illuminator Please click here for different light sources
Stand
Please click here for more optional stands
