Description and Notes |
 |
|
 |

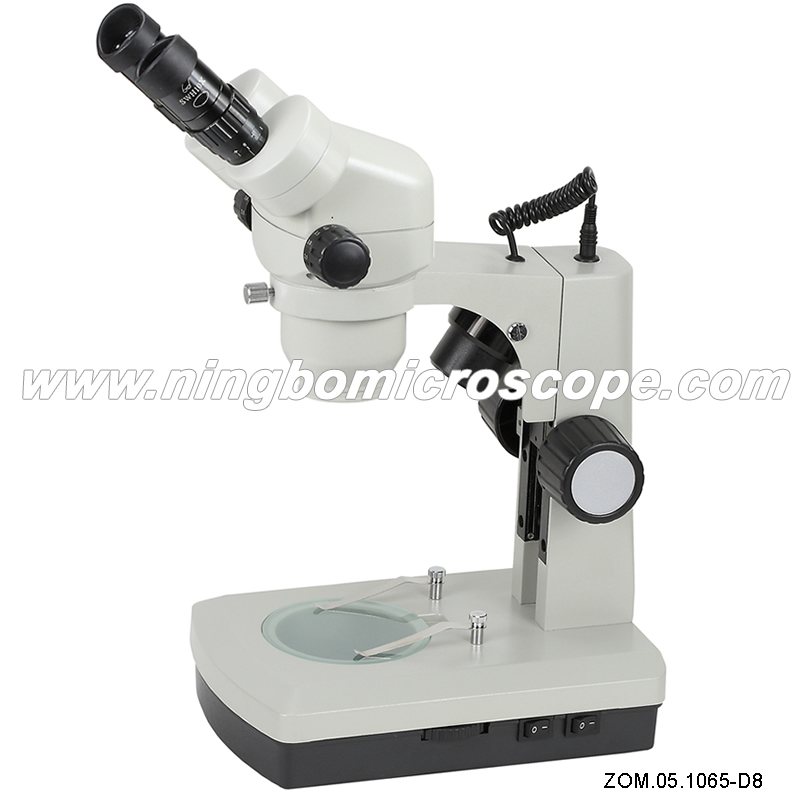

ZOM.05.1065B Binocular Zoom Stereo zoom optical system:1x-6.5x Both have big zoom ratio
Features
--Zoom magnification 10x-65x(standard), extend total magnification: 5x-390x
--Zoom objective magnification 1.0x-6.5x, working distance 118mm.
--High eye point and wide field eyepiece SWH10X(Φ23mm)
--Binocular/ Trinocular head inclined 45°, rotatable 360°, diopter adjustable ±6
--Head interpupillary distance of head adjustable from 52mm to 76mm
|
|
|
|
|
Optical Parameter |
|
|
|
|
|
Objective |
Main Body |
0.5x |
0.7x |
1.5x |
2.0x |
|
Standard Magnification |
1x-6.5x |
0.5x-3.3x |
0.7x-4.6x |
1.5x-9.8x |
2x-13x |
|
5x |
Total Magnification |
5x-32.5x |
2.55x-16.3x |
3.5x-22.8x |
7.55x-48.8x |
10x-65x |
|
FOV(mm) |
Φ23-Φ3.5 |
Φ46-Φ7 |
Φ32.9-Φ5 |
Φ15.3-Φ2.3 |
Φ11.5-Φ1.8 |
|
10x |
Total Magnification |
10x-65x |
5x-32.5x |
7x-46x |
15x-98x |
20x-130x |
|
FOV(mm) |
Φ23-Φ3.5 |
Φ46-Φ7 |
Φ32.9-Φ5 |
Φ15.3-Φ2.3 |
Φ11.5-Φ1.8 |
|
15x |
Total Magnification |
15x-97.5x |
7.5x-48.8x |
10.5x-69x |
22.5x-147x |
30x-195x |
|
FOV(mm) |
Φ17-Φ2.6 |
Φ34-Φ5.2 |
Φ24.3-Φ3.7 |
Φ11.3-Φ1.7 |
Φ8.5-Φ1.3 |
|
20x |
Total Magnification |
20x-130x |
10x-65x |
14x-92x |
30x-196x |
40x-260x |
|
FOV(mm) |
Φ14-Φ2.2 |
Φ28-Φ4.2 |
Φ20-Φ3.1 |
Φ9.3-Φ1.4 |
Φ7-Φ1.1 |
|
30x |
Total Magnification |
30x-195x |
15x-97.5x |
21x-138x |
45x-294x |
60x-390x |
|
FOV(mm) |
Φ9-Φ1.4 |
Φ18-Φ2.7 |
Φ12.9-Φ2 |
Φ6-Φ0.9 |
Φ4.5-Φ0.7 |
|
Working Distance(mm) |
118 |
195 |
145 |
50 |
35 |
|
|
|
|
|
