STD.06.TEMP Temperature Controlled Stage
Description and Notes
This stage can affordd the constant temperature and can be mainly applied to the microsocpe that used in teh biological technology for special request of constant temperature when viewing the specimen (Living Cell)
Features:
--Convenient installation: it can be installed on any standard stages of microscope.
--Quick reaching constant temperature:After plugging in the power and setting the temperature, it takes 1-2 minutre to warm-up the stage and reach the constant temperature in the certain of temperature
Specification
STD.06.TEMP Temperature controlled stage

Input power:110v/60hz or 220v/ 50hz,AC
--Power:50w
--Temp.control range:20 degree(room Temp.) to 50 degree
--Temp.setting Div: 0.1 degree
--Various between setting and displaying Temp:<+/-1 0C
--Various between actual stage temperature and displaying Temp.:<+/-1 0C

Standard outfit:

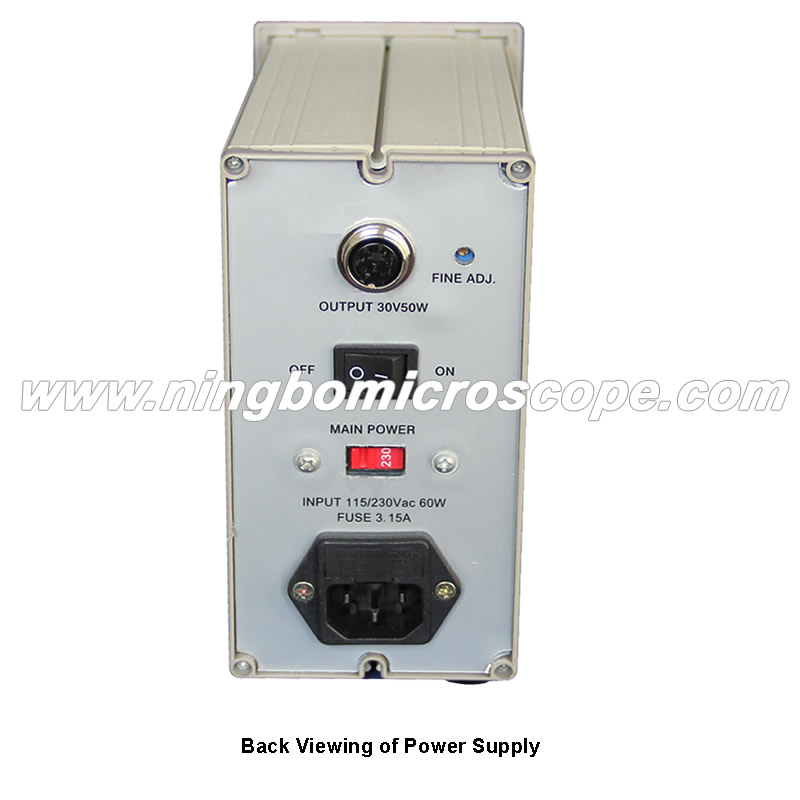

--Temp.controller
--stage:150x130x5.8mm
--Cable: 1 pcs
--Adhesive tape: 1 pcs
--Spare fuse: 2 pcs
