CPD.06.117M Compound Binocular Microscope
Description and Notes

--New machining facility and advanced alignment technology
--Complete functions and outfit of binocular microscope
--Comfortable operation with updated and ergonomic design

Specification
MODEL CPD.06.117M
Viewing Head Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm, Binocular Tube can be rotated upside down
Eyepiece WF10×/18
Objective Achromatic Objective 4×、10×、40×、100×
Nosepiece Backward Quadruple Nosepiece
Stage Double Layer Mechanical Stage 132×142mm/ 75×40mm
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm
Condenser Abbe NA 1.25 with Iris Diaphram & Filter
Illumination S-LED, Brightness Adjustable
Optinonal Accessory
MODEL Order NO.
Viewing Head Compensation Free Trinocular Head, Inclined at 30°, Interpupilary Distance 55-75mm,Binocular Tube can be rotated upside down
HED.06.117MT
Eyepiece P16×/11
EYE.06.P16FN11
Condenser Abbe NA 1.25 with Iris Diaphram & Filter
FAC.06.NA125-117
Illumination Halogen Lamp 6V/ 20W, Brightness Adjustable

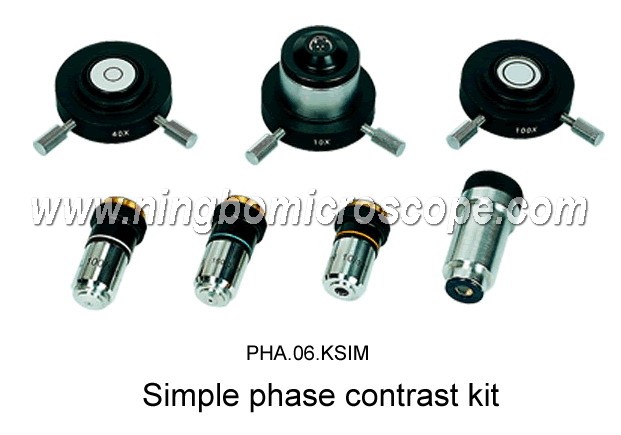

Simple Phase Contrast Set Simple PH Condensor+Achor PH10x-20x-40x+PH Slider 10-20-40x+ Centering Telescope

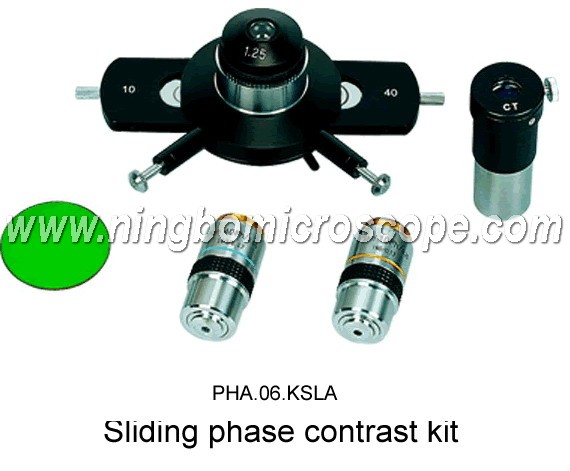

Sliding Phase Contrast Set PH Condensor+Achr PH10x-40x+ PH Slider 10x&40x+Centering Telescope

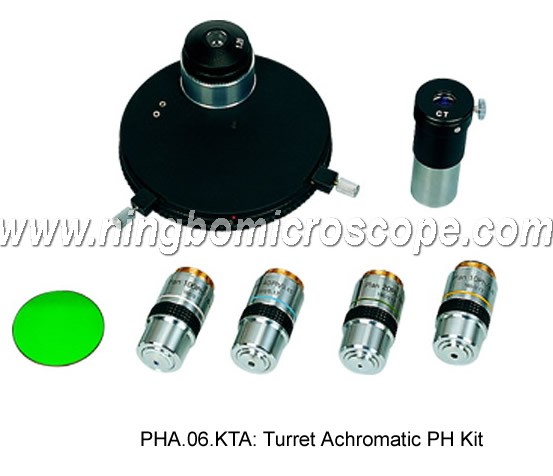

Turret Phase Contrast Condenser Turret Plate with Condensor +Achro PH10x-20x-40x-100x+Centering Telescope
Dark Field Condensor
FAC.06.DF-117
Polarizing Kits
FAC.06.PL-117
