Description and Notes |
 |
|
 |
--With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier
--Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable
--Different Holders for Various Observations
--With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens
|
|
|
|
|
Specification |
|
|
|
|
Inverted Biological Microscope |
|
Model |
|
|
|
Head |
Trinocular head inclined at 30°, interpupillary 48-75mm, Binocular Tube rotatable 360 degree, Light Splite 50:50 |

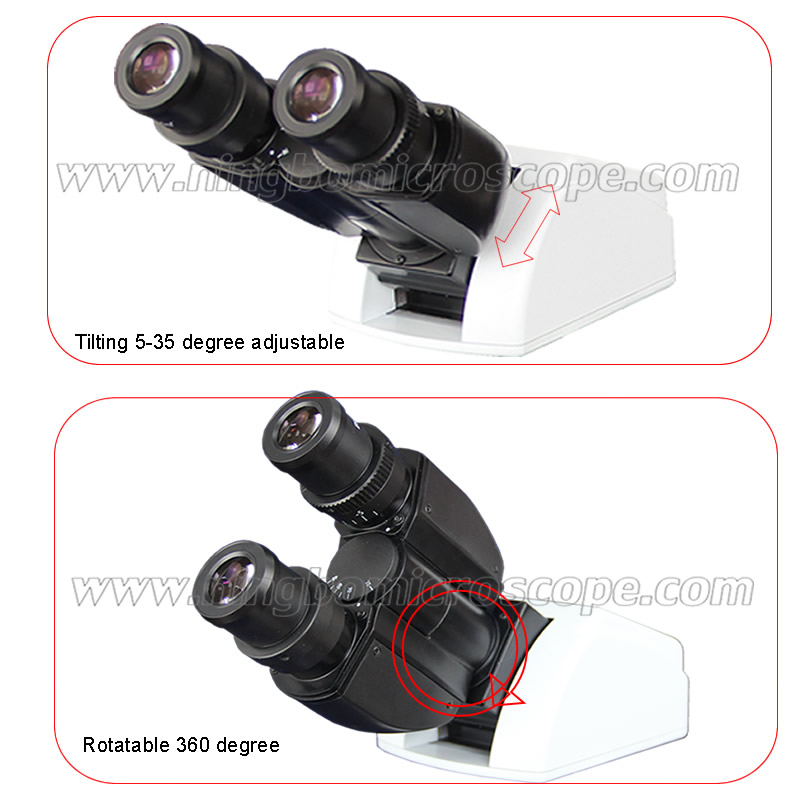

Tilting binocuar 5°- 35° , interpupillary 48-75mm , Binocular Tube rotatable 360 degree, |
|
Eyepiece |

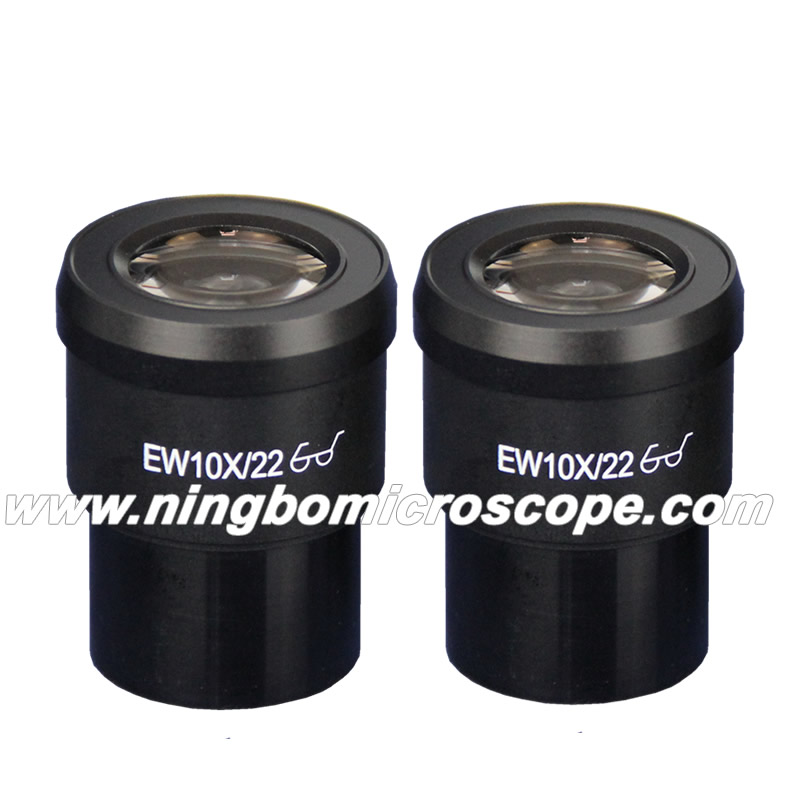

High-point ,extra wide field eyepiece EW10x/22mm |
High-point ,extra wide field eyepiece EW10x/22mm |
|
Infinity Plan LWD Objective |
4x/0.1,WD=18mm |
4x/0.1,WD=18mm |
| 40x/0.6,WD=2.6mm (cover glass 1.2mm ) |
40x/0.6,WD=2.6mm (cover glass 1.2mm ) |
| Infinity Plan Phase Contrast Objective |
PH10x/0.25,WD=10 mm |
PH10x/0.25,WD=10 mm |
| PH20x/0.4,WD=5.1mm |
PH20x/0.4,WD=5.1mm |
|
Nosepiece |
Quintuple Nosepiece |
Quintuple Nosepiece |
| Condenser |
ELWD Conderser NA 0.3, LWD 72mm; (Without condersor LWD150mm) |
ELWD Conderser NA 0.3, LWD 72mm; (Without condersor LWD150mm) |
Phase Annulus
Plate |
10x-20 phase annulus plate |
10x-20 phase annulus plate |
|
Stage |
Plain stage 160x250mm mm |
Plain stage 160x250mm mm |
| Glass insert |
Glass insert |
|
Focusing |
Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotatio |
Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotatio |
|
Illumination |
Halogen Lamp 6V30W, Brightness Adjustable |
Halogen Lamp 6V30W, Brightness Adjustable |
| Filter |
Blue, green and ground glass, Φ45mm |
Blue, green and ground glass, Φ45mm |
|
|
|
|
|
Optinonal Accessory |
|
|
|
|
Optional Accessories |
Order No. |
|
Infinity Plan LWD Objective |
10x/0.25,WD=10mm |
OBJ.06.IPLL10 |
| 20x/0.4,WD=5.1mm |
OBJ.06.IPLL20 |
| Infinity Plan Phase Contrast Objective |
PH40x/0.6,WD 0.35mm (cover glass 1.2mm) |
OBJ.06.IPHPL40 |
| Centering Telescope |
Centering Telescope, tube ф30mm |
PHA.06.TEL |
Phase Annulus
Plate |
phase annulus plate center adjustable for PH objetive 10x,20x, 40x |
PHA.06.SL3 |
|
Stage |
Attachable mechanical stage,X-Y coaxial controll, movement range:120x78mm |
STD.06.XY |
| Auxiliary stage 70x180mm |
STD.06.S70-180 |
| Terasaki holder |
STD.06.TH |
| Φ38mm Petri dish holder |
STD.06.PD38 |
| Φ54mm Slide glass holder |
STD.06.SG54 |
Adapter
|
1X C-mount video adapter |
ADA.06.C1x |
| 0.5X C-mount video adapter |
ADA.06.C0.5x |
|
|
|
|
|
