Description and Notes |
 |
|
 |
This microscope is a high level microscope which is specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this biological microscope makes your work enjoyable
--UCIS universal infinity independent plan optical system, parfocal distance 45mm
--Flexible upgrade path for phase contrast, dark field, and polarization
--Surface at lower temperature even after long time work
--Robust and vibration resistant
--Kohler illumination with 6V 20W halogen lamp |
|
|
|
|
Standard Set Specification |
|
|
|
|
|
CPD.13.U203I Compound Trinocurlar Microscope |
| Head |
Trinocular Head 30° inclined, 360° rotatable, interpupillary distance 52-75mm ,Diopter +5 to -5 |
| Eyepiece |

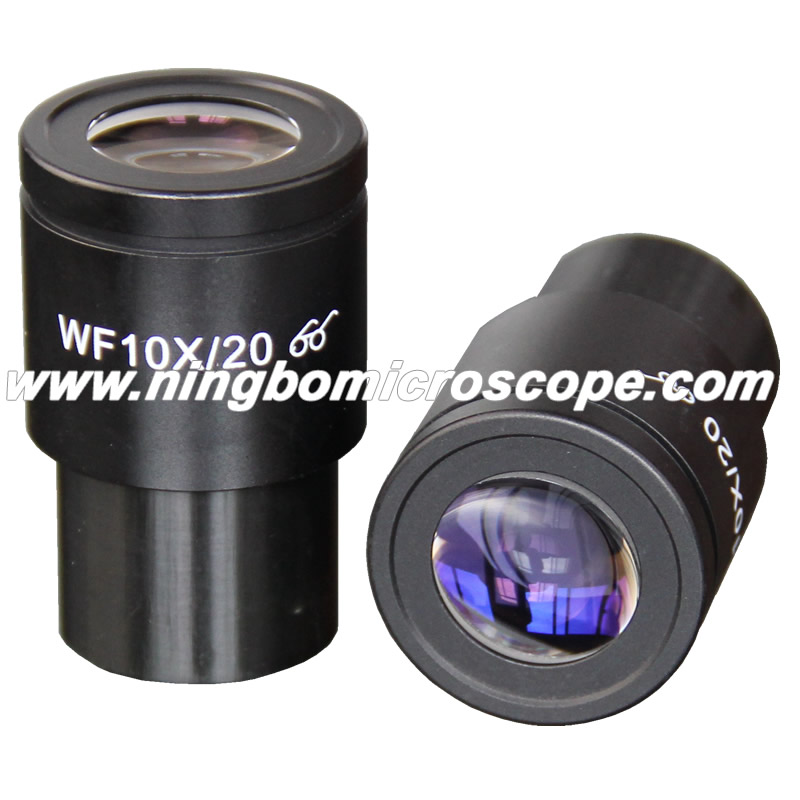

WF10X/20mm, high eye-point up to 21mm Dia:30mm |
| Objectives |
Infinity Plan 4x/0,1 WD=13.21mm |
| Infinity Plan 10X/0.25 WD=5.03 mm |
| Infinity Plan 40x/0,65 WD= 0.72mm |
Infinity Plan 100x/1,25 WD 0.17mm
|
| Nosepiece |
Quadruple reversed nosepiece |
| Focus System |
Low positioning, Coaxial coarse/fine focus system,
Coarse knob tension adjustable, 14mm per rotation
Fine knob 0.1mm per rotation, minimum reading 1 microns on left-side fine knob |
| Stage |
Double layer mechanical, size 156x138mm, moving range 76x54mm.
Low positioned X-Y coaxial control knob, can hold 2 specimen slides |
| Focus System |
Low positioning, Coaxial coarse/fine focus system,
Coarse knob tension adjustable, 14mm per rotation
Fine knob 0.1mm per rotation, minimum reading 1 microns on left-side fine knob |
| Condenser |
Abbe N.A.1.25 with aperture iris diaphragm and with socket to accomodate Phase Contrast slide Condenser center adjustable, color-coded diaphragm scale makrings corresonded with the objectives of different power. |
| Filter |
Blue filter |
| Light source |
6V 20W halogen lamp, Kohler Illumunation with field diaphragm, Easy to replace bulb. |
| Power |
100-240V wide power range, CE certified |
| Packing Info. |
Gross weight: 12kgs, One set/Carton, Carton Size: 48X48X31.5cm |
if You Want Order Binocular Complete Set, please click here |
|
|
|
|
|
Optinonal Accessory |
|
|
|
|
Name of Parts and Spec. |
Order No. |
| Head |
Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
HED.13.200B |
| Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
HED.13.200T |
| Eyepiece |
WF10x/22mm, High Eyepoint up to 21mm |
EYE.13.10FN22 |
| WF16x/13mm, High Eyepoint up to 21mm |
EYE.13.16FN13 |
| Retical Eyepiece WF10x/20mm |
EYE.13.10RFN20 |
| Retical Eyepiece WF10x/22mm |
EYE.13.10RFN22 |
| Objective |
Infinity Plan 20X/0.4/0.17, WD=2.71mm |
OBJ.13.INF-PL20 |
| Infinity Plan 60X/0.80 /0.17, WD=0.35mm (Spring) |
OBJ.13.INF-PL60 |
| Rackless mechanical stage |
Upgrade to mechanical stage 185x177mm platform, moving range 75x50mm, low position,right or left hand controls, X-Y coaxial control knob,two slides holder |
STD.13.RCK |
| Nosepiece |
Quintuple reversed nosepiece |
FAC.13.Nose-B |
| Light |
Reflection mirror |
|
| Upgrade to LED 3W |
|
| Filter |
Green filter |
FAC.13.FIL-G |
| Yellow filter |
FAC.13.FIL-Y |
| Frosted Glass |
FAC.13.FIL-F |
| Polarizing Kit |
Analyzer+Polarizer |
FAC.13.PL |
| Dark Field |
Dark field condenser, dry, for objective 4x,10x,40x,100x |
FAC.13.DF-DRY |
| Centering telescope |
Centering telescope |
PHA.13.TEL-A |
| Phase-contrast Condenser: |
Phase-contrast Condenser: NA:1.25, for 10X to 100X |
PHA.13.NA1.25 |
| Phase Contrast Slider, for Infinity Plan Phase Contrast Objective |
10x |
PHA.13.S-10 |
| 20x |
PHA.13.S-20 |
| 40x |
PHA.13.S-40 |
| 60x |
PHA.13.S-60 |
| 100x |
PHA.13.S-100 |
| Infinity Plan Phase Contrast Objective, Positive |
10x |
OBJ.13.PH10P |
| 20x |
OBJ.13.PH20P |
| 40x |
OBJ.13.PH40P |
| 60x |
OBJ.13.PH60P |
| 100x |
OBJ.13.PH100P |
| Infinity Plan Phase Contrast Objective, Negative |
10x |
OBJ.13.PH10N |
| 20x |
OBJ.13.PH20N |
| 40x |
OBJ.13.PH40N |
| 60x |
OBJ.13.PH60N |
| 100x |
OBJ.13.PH100N |
| Flourescent Attachment |
Florecence Set 100W |
FAC.13.FL100W |
Omega
Excitation Filter |
UV |
FAC.13.FLUV |
| V |
FAC.13.FLV |
| B |
FAC.13.FLB |
| G |
FAC.13.FLG |
| Adapter |
CCD 1.0x |
ADA.13.1x |
| CCD 0.5x |
ADA.13.0.5x |
| CCD 0.25x |
ADA.13. 0.25x |
| Canon EOS digital Adapter |
ADA.13.EOS |
|
|
|
|
|
