Description and Notes |
 | |
 |
0.35M C-Mount CMOS Camera
Aptina Sensor
5.6μm x 5.6μm Pixel Size
High Sensitivity
Microsoft Windows XP / Vista / 7 (32 & 64 bit)
DirectShow, Twain Capture API
For Microscope with C-Mount Adaptor

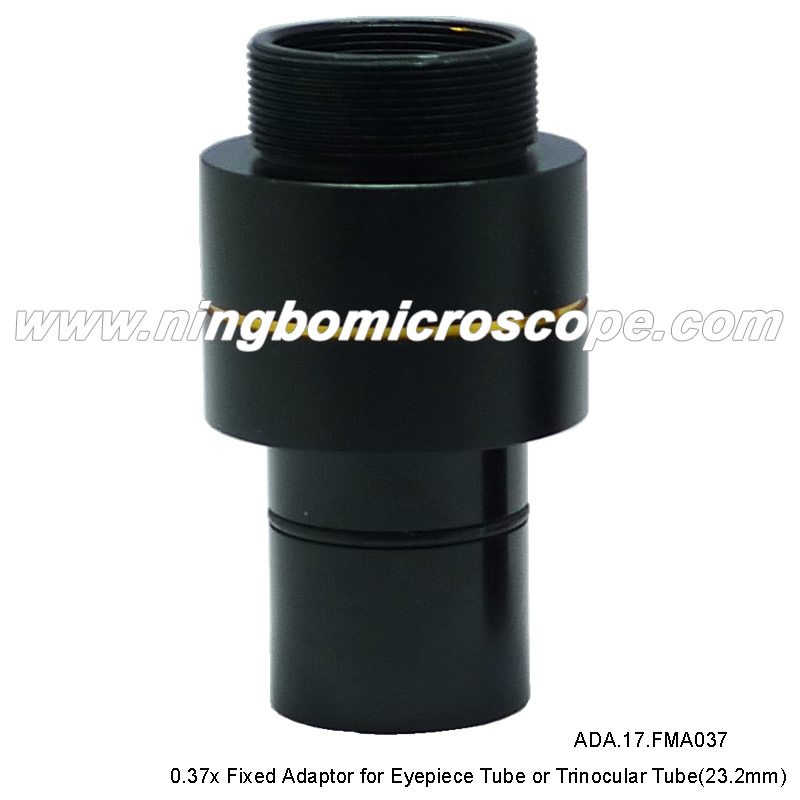

Extendable to Microscope Camera with Fixed Microscope Adaptor

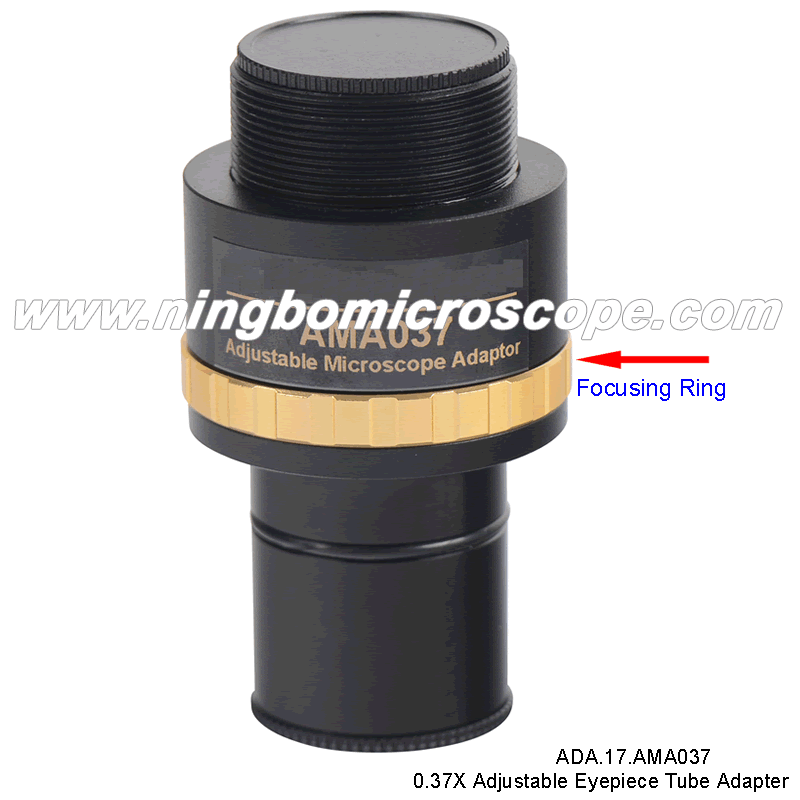

Extendable to Microscope Camera with Adjustable Microscope Adaptor
Extendable to Telescope Camera with Fixed Telescope Adaptor
Extendable to Telescope Camera with Adjustable Telescope Adaptor |
|
|
|
|
Specification |
| |
|
| CMOS.17.U35 CMOS Camera 0.35MP Hardware Configuration |
| Sensor Model |
APTINA MT9V011
|
| Scan Mode |
Progressive |
| Max. Resolution |
640 x 480 (Approx. 350,000 Pixels) |
| Sensor Size |
1/4 (3.58mm(H) x 2.69mm(V), Diagonal 4.48mm) |
| Pixel Size |
5.6μm x 5.6μm |
| Responsivity |
1.9v/lux-sec(550nm) |
| DynamicRange |
60dB |
| A/D Converter |
10-bit Parallel, 8-bit R.G.B to PC |
| SN Ratio |
45dB |
| Spectral Range |
400-650nm (with IR-filter) |
| Frame Size and Rate |
30fps @640 x 480, 80fps @320 x 240 (Multiple Speed Level) |
| Binning |
1 x 1, 2 x 2 |
| Exposure |
Electronic Rolling Snap(ERS),0.11~192.46ms, ROI Auto & Manual |
| Color Rendering Technique |
Ultra FineTM Color Engine |
| White Balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
Capture/Control API |
Native C/C++ SDK, DirectShow, Twain |
| Capture Mode |
Still Picture and Video |
| Software Environment |
| Operating System |
Microsoft Windows XP / Vista / 7 (32 & 64 Bit)
OS X (MAC OS X)
Linux (Kernel 2.6 or Above) |
| Packing szie |
Sinlge one packing size: 15x15x10(cm), about 0.6kgs 20pcs per cartons packing size:50x30x30cm about 16kgs/ctn | |
|
|
|
|
Order Guide for Other models |
| |
 |
|
Order Number |
Description |
|
CMOS.17.U1400 |
1> 1/2.3” color Aptina CMOS sensor
2> 14 Mega Pixels
3> Aptina MT9F001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:68 X 68 X 43mm |
|
CMOS.17.U1000 |
1> 1/2.3” color Aptina CMOS sensor
2> 10 Mega Pixels
3> Aptina MT9J001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm |
|
CMOS.17.U900 |
1> 1/2.4” color Aptina CMOS sensor
2> 9 Mega Pixels
3> Aptina Non-public (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm |
|
CMOS.17.U800 |
1> 1/2.5” color Aptina CMOS sensor
2> 8 Mega Pixels
3> Aptina Non-public (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm |
|
CMOS.17.U510 |
1> 1/2.5” color Aptina CMOS sensor
2> 5.2 Mega Pixels
3> Aptina MT9P001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm |
|
CMOS.17.U310 |
1> 1/2” color Aptina CMOS sensor
2> 3.2 Mega Pixels
3> Aptina MT9T001 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm |
|
CMOS.17.U200 |
1> 1/2” color Aptina CMOS sensor
2> 2.0 Mega Pixels
3> Aptina Non-public (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm |
|
CMOS.17.U130 |
1> 1/3” color Aptina CMOS sensor
2> 1.3 Mega Pixels
3> Aptina MT9M111 (Progressive)
4> C-Mount, USB2.0
5> Square Housing:58 X 58 X 32mm | |
|
|
| |
