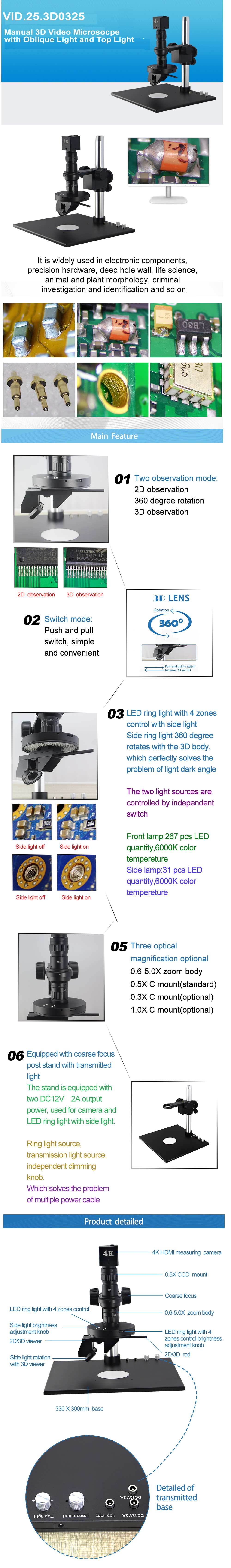

| Model |
VID.25.3D0325M |
| Lens parameter |
| Optical magnification |
0.6-5.0X zoom body with 0.5X C mount |
| Total magnification |
14-120X (based on 15.6 inch 4K monitor) |
| Working distance |
2D:86mm 3D:50mm |
| Ratio |
1:8.3 |
| Field of view |
25.6x14.4-3.0*1.7mm |
| Lens mount |
Standard C mount |
| Observation mode |
2D observation |
| Automatic 360 degree rotation 3D observation |
| Push and pull |
| Light source parameter |
| Front light |
267 PCS LED，color temperature 6000K，Brightness 0-100% adjustable |
| Side light |
31 PCS LED, color temperature 6000K，Brightness 0-100% adjustable |
| Stand parameter |
| Base size |
330*300mm |
| Focus |
Coarse focus |
| Height of post |
318mm |
Note: Camera is Optional, you can use different HDMI camera.. |
|
Research Level Microscope
