| Name of Part |
Order No |
Sepfification |
MTL.03.NIR68 |
| Eyepiece |
PLN10X22T |
Plan eyepiece PL10X/22mm, diopter adjustable |
O |
| PLN10X22TR |
Plan eyepiece PL10X/22mm, diopter adjustable with reticle |
O |
| PLN10X23T |
Plan eyepiece PL10X/23mm, diopter adjustable |
●● |
| PLN10X23TR |
Plan eyepiece PL10X/23mm, diopter adjustable with reticle |
O |
| Head |
NIRTH30R |
NIR Trinocular Head, Inclined 30 degree, Erect Image, Interpupillary 50-76mm,Beam splition,Bino/Trino: 100/0 or 0/100 |
● |

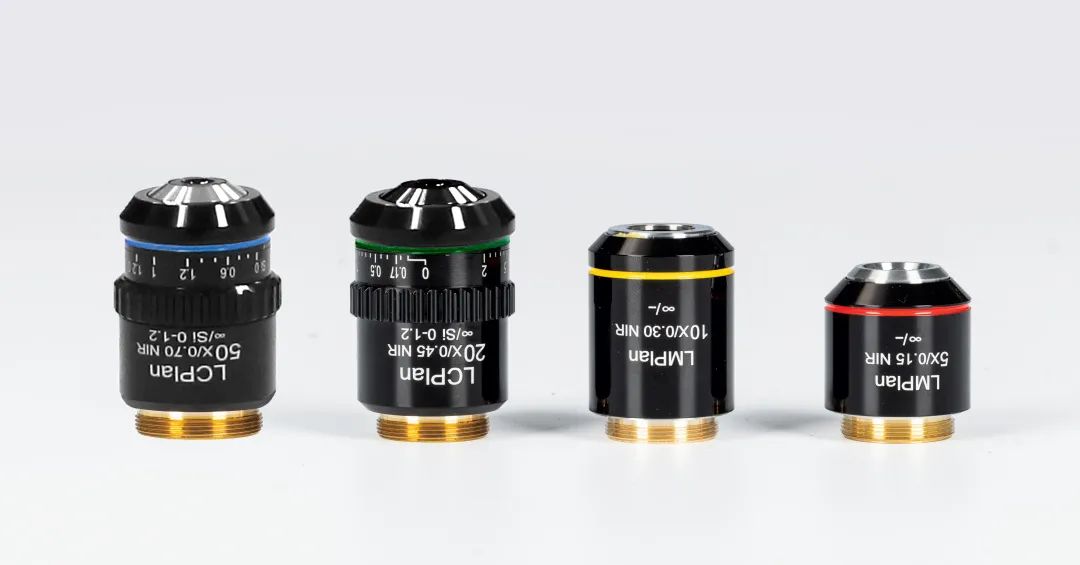

| Objective |
OLIP5-NIR |
Plan Plan Semi-APO NIR 5X/0.15,WD=19.5mm,Wave Length:450-1700nm |
● |
| OLIP10-NIR |
Plan Plan Semi-APO NIR 10X/0.3,WD=12.2mm,Wave Length:450-1700nm |
● |
| OLCIP20-NIR |
Plan Plan Semi-APO NIR 20X/0.45,WD=7.31-7.57mm,Cover glass: 0-1.2mm,Wave Length:450-1700nm |
● |
| OLCIP50-NIR |
Plan Plan Semi-APO NIR 50X/0.7,WD=2.68-2.93mm,Cover glass:0-1.2mm,Wave Length:450-1700nm |
● |
| Nosepiece |
PI115C6IMOTa |
Sextuple Motorized Nosepiece (with DIC slot) |
● |
| Main Body |
NIR-MX68RF |
Reflected frame with low position coaxial focus mechanism, coarse range: 35mm, fine precision:0.001mm.With upper limit and tension adjustment. Built-in100-240V wide voltage system
NIR reflective illuminator, with a switch for changing bright field and NIR; with variable electric aperture diaphragm,Center is adjustable; With color filter slot; 12V 100W halogen light |
● |
| Stage |
MXRTSGMC6 |
6" three layers mechanical stage 445x240mm, moving range for reflection: 158x158mm, for transmission: 100x100mm, glass stage, X, Y moving hand wheel, with clutch hand, right hand shank, can move quickly. |
O |
| MXSGMC8 |
8" C3Three Layers Woring stage, stage size: 525x330MM ,Movement:210mmX210mm,with controller handle, can move quickly all range. Glass insert for transimitted light |
● |
| Wafer Holder |
MXSGR |
6inch Rotatable Wafer Stage (suitable for 4,5,6inch wafer) |
O |
| MXSGMC8R |
6inch Rotatable Wafer Stage (suitable for6,8inch wafer) |
O |
| Light |
NIR-MX68RLH |
12V100W Halogen Lamp House (centerpre-setting) |
● |
| HB12-100 |
12V/100W Halogen Lamp（PHILIPS 7724） |
●● |
| Filter |
NIR-1100 |
1100nm NIR Fitler (For reflection) |
● |
| NIR-1200 |
1200nm NIR Filter (For reflection) |
O |
| NIR-1300 |
1300nm NIR Filter (For reflection) |
O |
| Camera |
OD130I |
1.3 Mega pixel NIR camera(400-1700nm),monochrome camera, frame rate 125fps@1280x1024, pixel size 5 μ m |
O |
| LT345R |
3.2 Megavpixel NIR camera (400-1100nm) monochrome camera, frame rate 120fps@2064x 1544, pixel size 3.45 μm |
● |
| CCD adapter |
RX50CTV1 |
1X CCD Focusalbe adapter, |
● |
| Computer |
PC-NIR-24 |
Lenovo M460(i5-12400 16G 1T+256G HD)+23.8inch Monitor
|
● |
| Software |
MV Image-Industry |
Image processing, image acquisition, image management, measurement functions |
● |
| Micrometer |
W-CAT909 |
Micrometer with 0.01mm division |
● |
| Tools |
6010X3293 |
M4 Straight Hex rench |
● |
| 6010x3245 |
M4 Hex rench |
● |
| Packing |
Package |
PE Foam Box with Durable Paper box |
● |
| ● ：Standard Parts, O：Optional |
