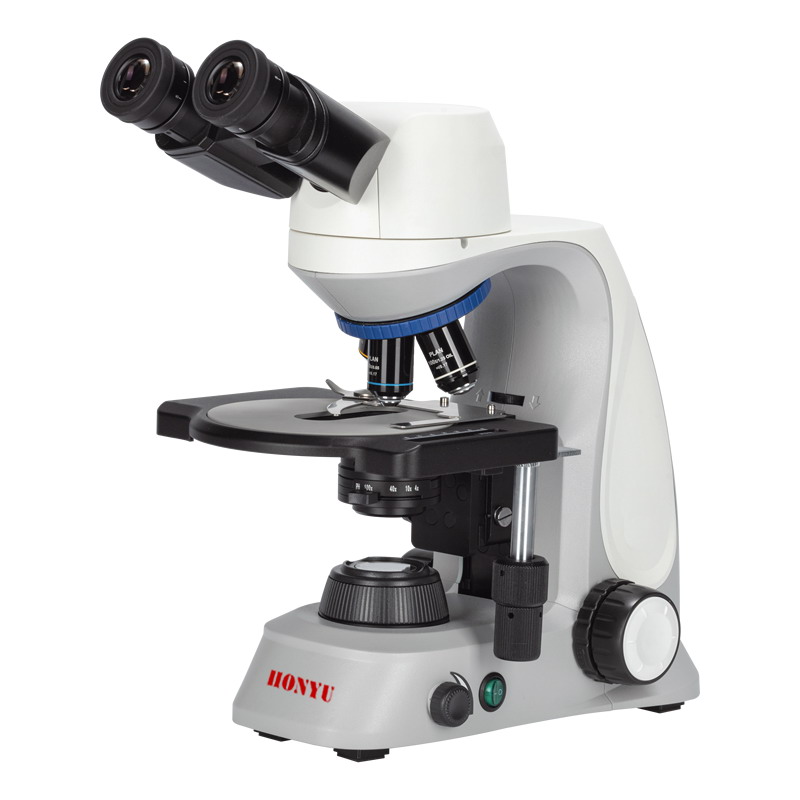

CPD.03.E33B Compound Binocular Infinity Plan Microscope
Description and Notes

CPD.03.E33 Compound Binocular Infinity Plan Microscope
Specification
Name of Part Specification
CPD.03.E33 Series

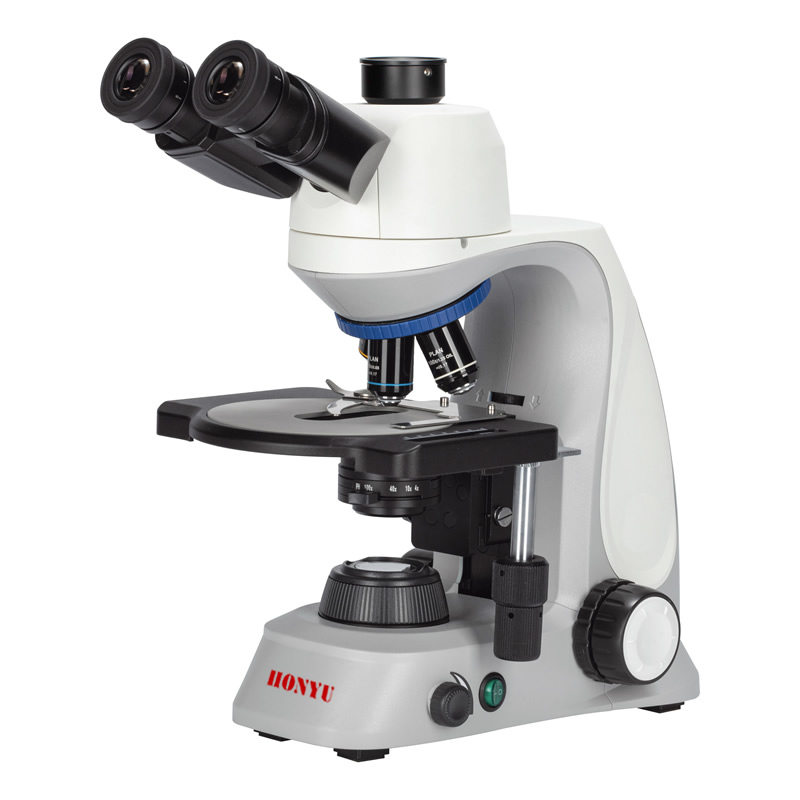

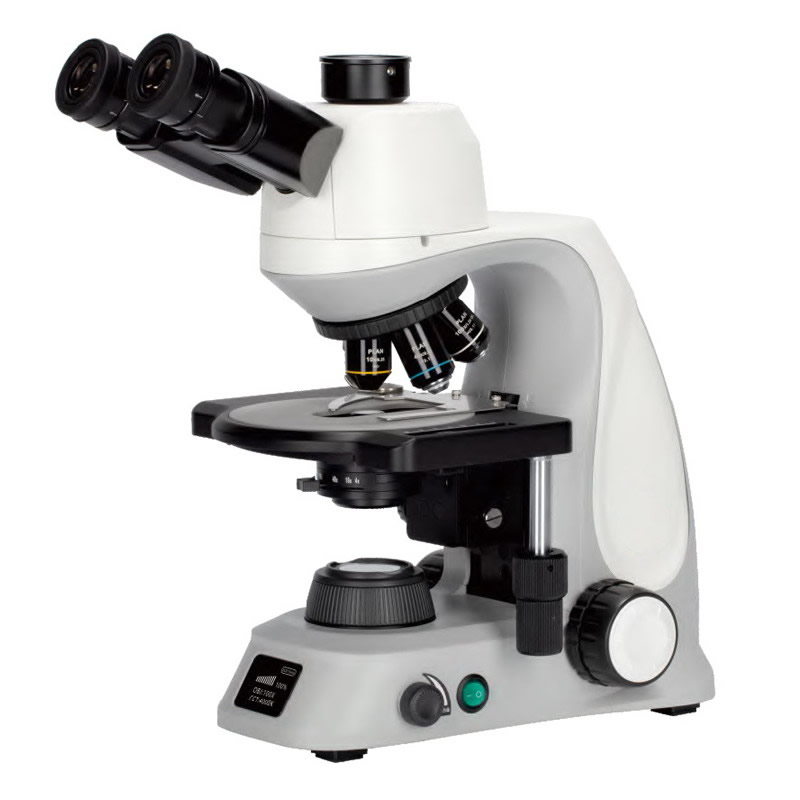

E33B E33T E33ST
Main Body Frame EX33F1 With ECO function(The standard ECO time is 30 minutes）.
●
●
-
EX33F2 With LCD display(which displays ECO duration, current light brightness, color temperature and objective magnification)
-
-
●
Head EX33BH25R 30° inclined，gemel binocular，360° rotatable，adjustable eye-point height 375-428.5mm，fixed eyepiece tube，diopter adjustable 48-76mm
●
-
-
EX33TH25R 30° inclined，gemel trinocular，360° rotatable，adjustable eye-point height 375-428.5mm，fixed eyepiece tube，diopter adjustable 48-76mm，spectroscopical ratio R:T=50:50
-
●
●
Eyepiece PLN10X22T High eye-point wide-field plan eyepiece, 10X/22mm, diopter adjustable
● ●
● ●
● ●
PLN10X22TR High eye-point wide-field plan eyepiece, 10X/22mm，diopter adjustable, with reticle
O
O
O
PLN10X22TR-G High eye-point wide-field plan eyepiece, 10X/22mm，diopter adjustable, with grid plate
O
O
O
Nosepiece Quintuple Nosepiece
●
●
-
Quintuple Nosepiece with brightness memory
-
-
●
Objective OIPN2 infinite plan achromatic objective 2X/NA0.06 WD=5.00mm（used frosted glasses inserts together）
O
O
O
EX30-IFW frosted glasses inserts module(used 2X objective together )
O
O
O
OIPN4 infinite plan achromatic objective 4X/NA0.1 WD=15.00mm
●
●
●
OIPN10 infinite plan achromatic objective 10X/NA0.25 WD=10.8mm
●
●
●
OIPN20 infinite plan achromatic objective 20X/NA0.40 WD=1.50mm
O
O
O
OIPN40S infinite plan achromatic objective 40X/NA0.65 WD=0.80mm
●
●
●
OIPN60S infinite plan achromatic objective 60X/NA0.85 WD=0.30mm
O
O
O
OIPN100S infinite plan achromatic objective 100X/NA1.25 WD=0.21mm，Oil
●
●
●
Stage Double layer mechanical stage with ceramic painting, size 210*171mm, moving range 78*51mm, precision 0.1mm(X-axis rackless), clips for double sliders.
●
●
●
Focusing Syetem Coaxial focus system with upper limited and tension adjustment, coarse range 27mm, fine precision 0.002mm, focus height adjustable.
●
●
●
Phase contrast Objective OIPPN10 infinite plan achromatic phase contrast objective 10X/NA0.25 WD=10.8mm
O
O
O
OIPPN20 infinite plan achromatic phase contrast objective 20X/NA0.40 WD=1.50mm 　
O
　
O
　
O
OIPPN40S infinite plan achromatic phase contrast objective 40X/NA0.65 WD=0.80mm
O
O
O
OIPPN100S infinite plan achromatic phase contrast objective 100X/NA1.25 WD=0.18mm，Oil
O
O
O
Condensor EX33CDK1.25FC NA1.25 Koehler illuminator condenser (with socket for phase contrast and dark field accessoies) with aperture diaphragm
●
●
●
Dark Field Kits EX33-DFK dark-filed inserts module，compatible with 4x-40x
O
O
O
Illumination Wide voltage 100-240V, single 3W LED, cold white 4750-5500k, intensity adjustable. Allowed to charge the microscope by the portable charge, allowed to charge cell phones and tablets by the microscope.
●
●
●
PH Kits EX33-SLP1 phase contrast inserts module，compatible with 10x、40x phase contrast observation
O
O
O
EX33-SLP2 phase contrast inserts module，compatible with 20x、100x phase contrast observation
O
O
O
XY-SCE telescope（30mm）
O
O
O
CCD adapter 1X camera adapter，C mount，focusing adjustable
O
O
O
0.35X camera adapter，C mount，focusing adjustable
O
O
O
0.5X camera adapter，C mount，focusing adjustable
O
O
O
0.65X camera adapter，C mount，focusing adjustable
O
O
O
Other Accessories Hexagon wrench M4
●
●
●
Dust cover
●
●
●
Lens cleaning paper
●
●
●
User manual
●
●
●
Inner pearl sponge, outer carton
●
●
●
