STD.30.GM2 XY Mechanical Measurement Stage with Digital Micrometer
Description and Notes
STD.30.GM2 XY Mechanical Measurement Stage with Digital Micrometer
● XY Mechanical Stage for measurement microscope systems provides a total of 2x2 inch (50x50mm) travel in the X and Y directions.
● When the stage is centered, a total of 2 inches (50mm) of travel can be achieved, meaning 1 inch (25mm) to any side.
●The hole in the center of the stage allows bottom lighting to shine through, diffused by a matte glass stage plate cover.
STD.30.GM2 XY Mechanical Measurement Stage with Digital Micrometer
Stage Specification
Stage Dimensions 150x150x36mm
Stage Backlight Window size Dia.90mm
XY-Axis Measurement Mode Micrometer
XY-Axis Resolution 1um
XY-Axis Measurement Accuracy 0.001mm
Micrometer Head Mount Size Dia.11mm
Stage Bottom Mounting Size Dia.95mm
Number of Stage Clips 1 Pair
Surface Treatment Black Oxide Finish
Material Metal
Net weight 2.10kg (4.63lbs)
Digital Micrometer Specification
Measurement Range 0-25mm (O-0.984 in.)
Resolution 1um
Accuracy 0.001mm
Spindle Diameter Dia.8mm
mm/inch Conversion Yes
Zero-Setting Yes
Data Output Yes
Power Supply Type Battery SR44 1pc
Surface Treatment Polished Chrome
Material Metal
Optional Model

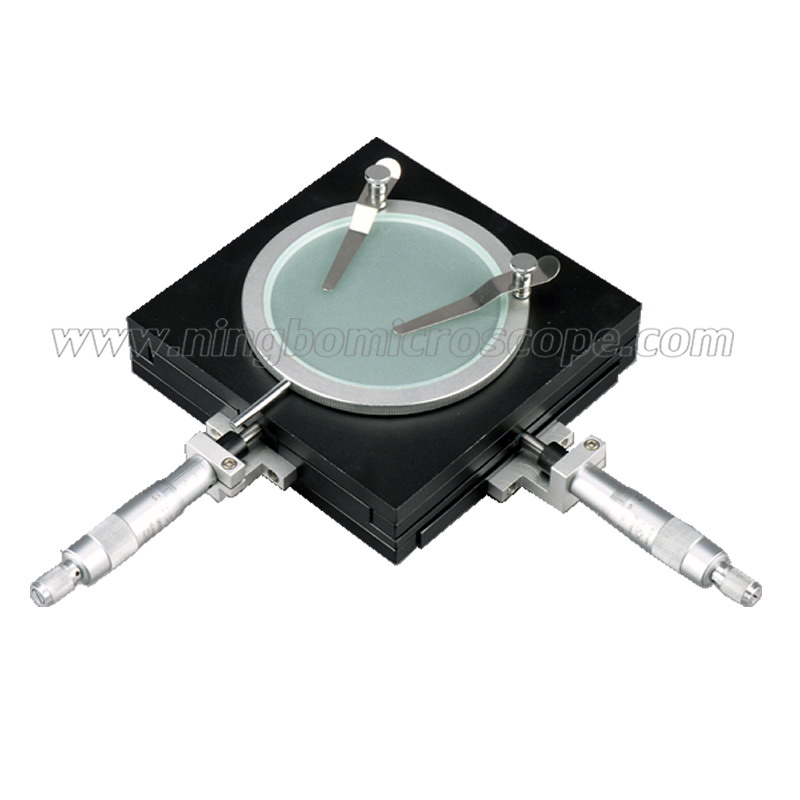

STD.30.GM1 XY Stage with Mechanical Micrometer
