Description and Notes |
 |
|
 |

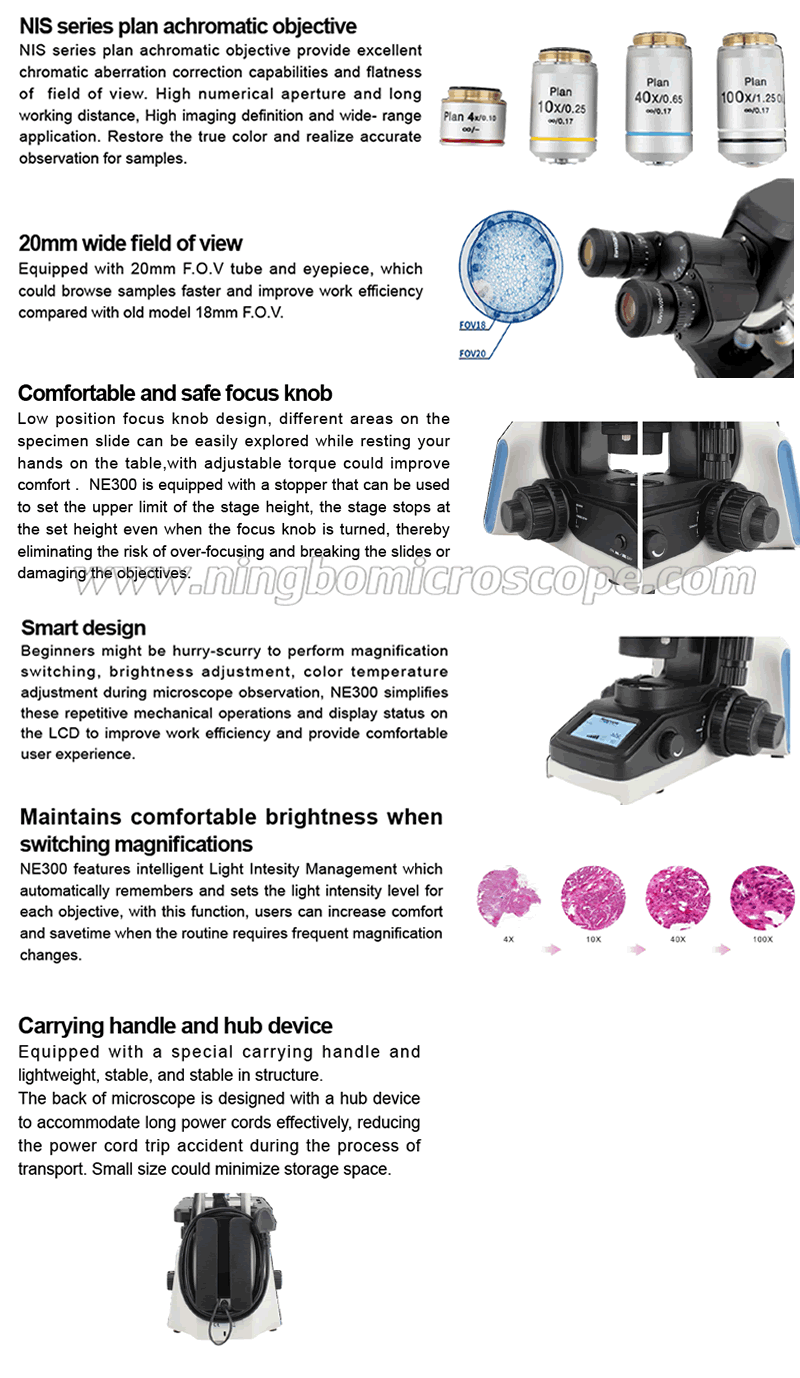

CPD.06.NE300 Compact Teaching Experiment Biological Microscope
|
|
|
|
|
Specification |
|
|
|
| Model |
CPD.06.NE |
BDG.06.NE300 |
300B |
300T |
| Optical system |
NIS45 Infinity corrected optical system |
● |
● |
● |
| Viewing head |
Seidentopf binocular head, inclined at 30°, interpupillary 47-78mm, dual visibility adjustable |
● |
- |
- |
| Seidentopf trinocular head, inclined at 30°, interpupillary 47-78mm, dual visibility adjustable, splitting ratio of eyepiece/camera: 100/0, 0/100 |
- |
● |
-
|
| Digital binocular head, inclined at 30°, interpupillary 47-78mm, dual visibility adjustable, with built-in 5MP 1?2 inc CMOS Color camera at 2448×2048 pixels, support Wifi, USB, come with imaging software compatible with Windows, and MAC OS platforms, or app for smartphone |
- |
- |
● |
| Eyepiece |
One pair of EW10x/20mm eyepiece with diopter adjustment |
●● |
●● |
●● |
| Objectives |
All with anti-fungus treatment. |
● |
● |
● |
| NIS45 Infinite Plan Achromatic Objective 4x, NA 0.1, WD: 20.6mm |
● |
● |
● |
| NIS45 Infinite Plan Achromatic Objective 10x, NA 0.25, WD: 18mm |
● |
● |
● |
| NIS45 Infinite Plan Achromatic Objective 40x, NA 0.65, WD: 1.5mm |
● |
● |
● |
| NIS45 Infinite Plan Achromatic Objective 100x, NA 1.25, WD: 0.13mm, spring loaded, oil |
● |
● |
● |
| Stage |
Double layer mechanical stage, with size: 180x130mm, 75x30mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm |
● |
● |
● |
| Focusing |
Integrated design, coaxial focus system with upper limited and tension adjustment, coarse stroke 37.7mm per rotation, fine precision: 0.002mm fine stroke 0.2mm per rotation, moving range: 25mm, provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device |
● |
● |
● |
| Condenser |
Inserted abbe N.A. 1.25 condenser with aperture diaphragm, with objective position scales |
● |
● |
● |
| Illumination |
3W LED, matrix lens for uniform field illumination, color tempeature and brightness adjustable. The brightness of the entire field of view is uniform. Handle for adjustment of illumination intensity. LED illumination specterum is near to Sun light.? |
● |
● |
● |
| LCD Screen |
The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity, standby status, lock for lighting-adjustment, time sleeping etc. |
● |
● |
● |
| ECO Function |
The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after user step away from their position for some time (the time can be pre-set as user need) |
● |
● |
● |
| Power |
Multi-plug 100-240Vac, 50/60Hz external power supply |
● |
● |
● |
| Supplied with |
Dust cover, spare fuse, blue & green filters, slim and easy to carry, support to reduce the fatigue during use, with carrying handle and hub device |
● |
● |
● |
|
|
|
|
|
