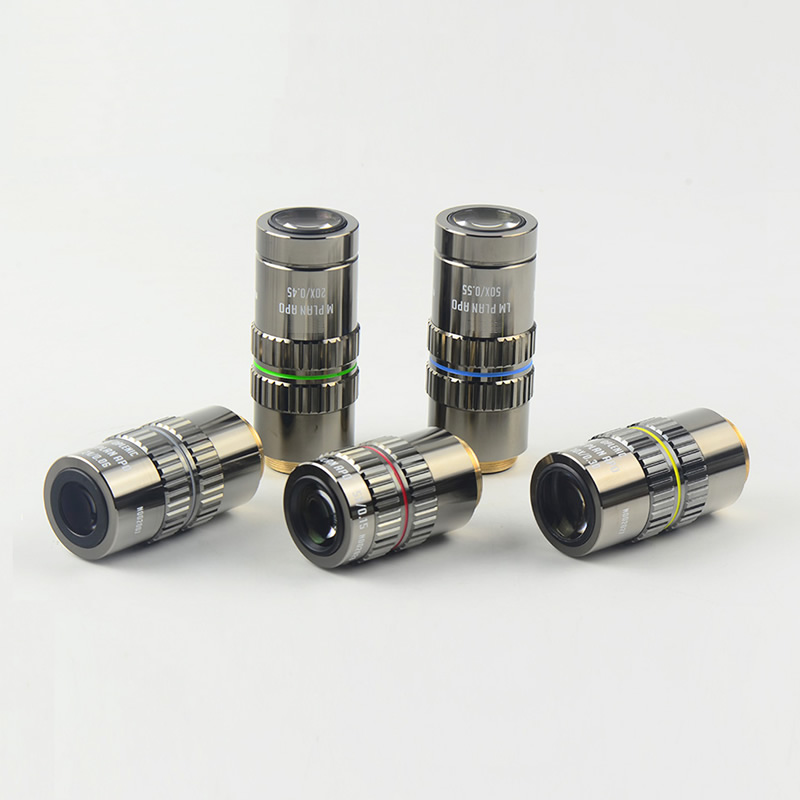

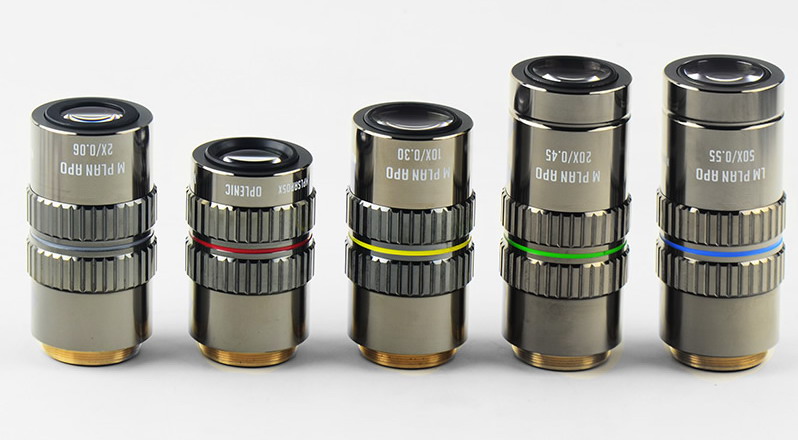

OBJ.43.LSAPO M Plan APO Objective
Description and Notes

High Quality 95mm Plan APO Metallurgical Objective

Specification

Order No. TYPE N.A W.D (mm) FL (mm) TL (mm) OFN (mm) RES (μm) DOF±Δ (μm) SCREW Length (mm) Dia. (mm)
OBJ.43.LSAPO2X BF 0.06 35 100 F=200 26.5 6.5 110 M26 67 35
OBJ.43.LSAPO5X BF 0.15 45 42 F=200 26.5 2.5 20 M26 56 35
OBJ.43.LSAPO10X BF 0.3 35 20 F=200 26.5 1 4 M26 67 35
OBJ.43.LSAPO20X BF 0.45 21 10 F=200 26.5 0.65 2 M26 81 35
OBJ.43.LSAPO50X BF 0.75 11.5 5 F=200 26.5 0.4 0.6 M26 92 35
OBJ.43.LSAPO100X BF 0.8 6 2 F=200 26.5 0.35 0.8 M26 95 35
