Description and Notes |
 | |
 |
LGT.57.S300 15W Smart LED Light Source
--High Power output, body cooling design, long life time
--High Brightness LED chip, specail focus lens
--Power save, less than 15w power consumption
--AC or DC power supply
-- Mini body is easy to carry, side fix slot design
|
|
|
|
|
Specification for Main Body |
| |
|
| Model |
LGT.57.S300 |
| Drive way |
Constant-current system |
| Power supply |
AC 96- 240V power adaptor, 50/60Hz /DC 24V 1.5A |
| Power consumption |
15W max |
| Dimming control |
Continuous Dimming 0~5v Analog Control PWM 200Hz 5V |
| Average Iluminance (x) |
Approx. 143,0001x |
| Color temperature |
5000K-8300K |
| Av. LED life |
Approx. 30 ,000 Hours |
| Cooling system |
Boday+high speed fan |
| Operating condition |
0°C~+45 C/20%~80%RH |
| Installation |
Horizontal installation on the rubber supports at the bottom of the unit or Side T slot |
| Net weight |
840g |

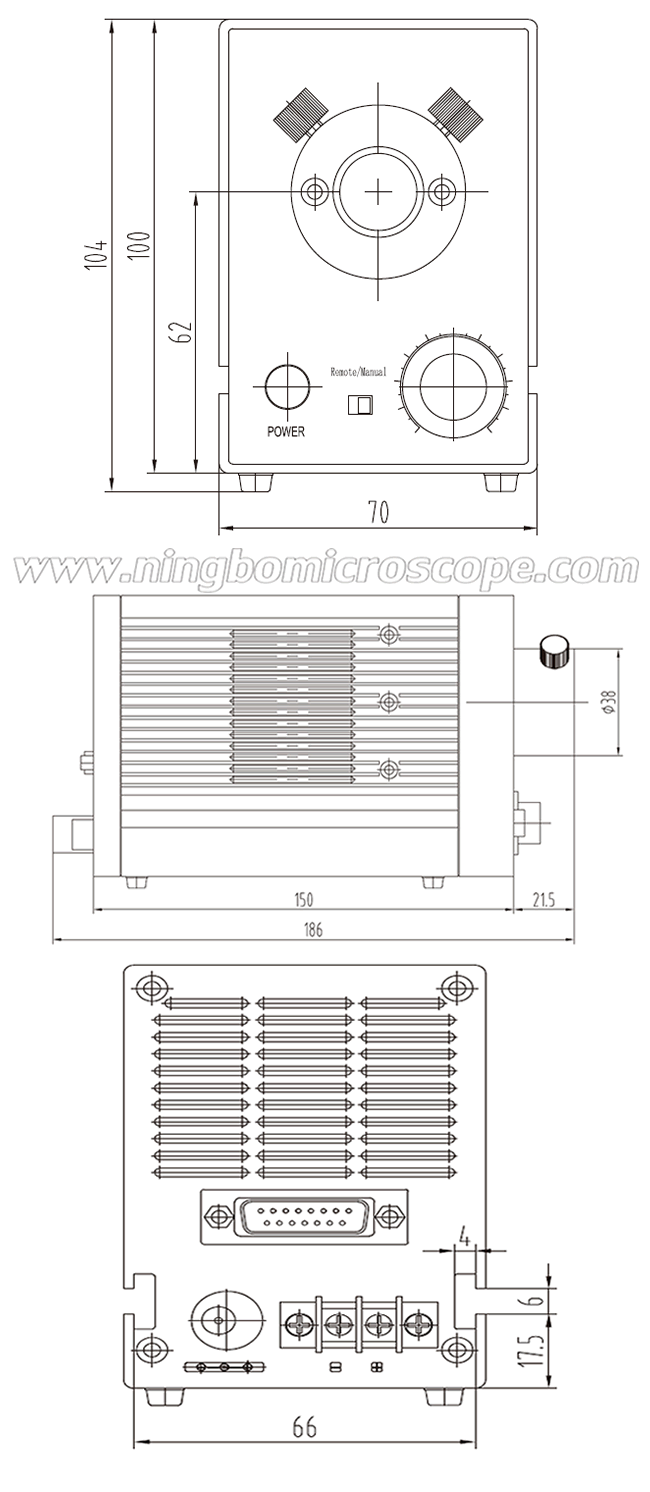

| Size |
186(L)x70(W)x 104(H)mm | |
|
|
|
|
Order Guide |
| |
|
| Model |
Description |
| LGT.57.S300 |
Light Source Main Body |
| LGT.57.S300Y |
Light Source Main Body+ Double Pipe Fiber |
| LGT.57.S300-R65 |
Light Source Main Body+65mm Ring Pipe Fiber |
| LGT.57.S300-IS |
Light Source Main Body+Single Soft Fiber |
|
|
|
|
|
