HYSNXWDT Small Distortion Big Depth of View Telecentric Lens
Description and Notes

HYSNXWDT Small Distortion Big Depth of View Telecentric Lens
● This series Lens is telecentric design, standard CCD interface which is suit for 1/2'',1/3'',1/4'' and 1/6'' CCD camera.
● Installation parts Diamter (D2): 18mm or 16mm
● Telecentricity<1''

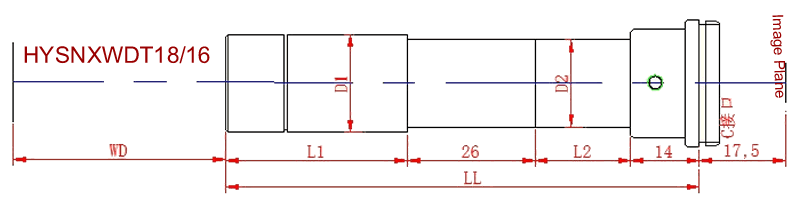

● Model No. diaghram: HY-S-NX-WD-T18 : HY( HONYU)-S(Straight Tuber)- N (magnification)-WD(WD=Working Distance)-T18(Installation Diameter : D2); For example: HYS0.5X180T

Note: .NA and Depth of field can be customized according to customers' requirements. we can make special design for customer's customization
Specification

Model No. Mag. WD DOF NA Res F/# Distor
tion%
Telecen
tricity <
 LL L1 L2
D1
D2
Mount
Sensor Size
HYS0.3X150T18 0.3 150 5.8 0.023 0.015 6.5 <0.1
0.1
 101.3 37.1 24.2
20
18
C
1/3'
HYS0.4X150T18 0.4 150 4.35 0.023 0.015 8.7 <0.05
0.1
 101.3 37.1 24.2
20
18
C
1/3'
HYS0.5X68T18 0.5 68 4.71 0.017 0.02 14.7 <0.1
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS0.5X110T18 0.5 110 1.95 0.041 0.008 6.1 <0.1
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS0.5X110T18 0.5 110 4.71 0.017 0.02 14.7 <0.1
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS0.5X150T18 0.5 150 3.2 0.025 0.013 10 <0.1
0.1
 86.1 37.1 9
20
18
C
1/2'
HYS0.5X180T18 0.5 180 1.95 0.041 0.008 6.1 <0.38
0.1
 80.1 37.1 3
20
18
C
1/2'
HYS0.5X180T18 0.5 180 2.42 0.033 0.01 7.6 <0.38
0.1
 80.1 37.1 3
20
18
C
1/2'
HYS0.5X180T18 0.5 180 3.2 0.025 0.013 10 <0.38
0.1
 80.1 37.1 3
20
18
C
1/2'
HYS0.5X40T18/16 0.54 40 1.81 0.041 0.008 6.6 <0.1
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.5X40T18/16 0.54 40 2.24 0.033 0.01 8.2 <0.05
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.5X40T18/16 0.54 40 2.96 0.025 0.013 10.8 <0.1
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.5X40T18/16 0.54 40 4.36 0.017 0.02 15.9 <0.1
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.6X110T18 0.59 110 1.65 0.041 0.008 7 <0.04
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS0.65X88T18/16 0.65 88 1.5 0.041 0.008 7.9 <0.04
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.65X88T18/16 0.65 88 1.86 0.033 0.01 9.8 <0.1
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.65X110T18/16 0.66 110 1.48 0.041 0.008 8 <0.04
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.65X110T18/16 0.66 110 1.84 0.033 0.01 10 <0.1
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.7X68T18/16 0.7 68 2.29 0.025 0.013 14 <0.3
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.7X110T18/16 0.7 110 1.39 0.041 0.008 8.5 <0.2
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS0.7X145T18 0.7 145 1.17 0.049 0.007 7.1 <0.3
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS0.7X145T18 0.7 145 1.39 0.041 0.008 8.5 <0.3
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS0.7X145T18 0.7 145 1.73 0.033 0.01 10.6 <0.3
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS0.7X145T18 0.7 145 2.29 0.025 0.013 14 <0.3
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS0.7X145T18 0.7 145 3.36 0.017 0.02 20.6 <0.3
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS0.7X250T18 0.75 250 2.13 0.025 0.013 15 <0.3
0.1
 89.4 37.1 12.3
20
18
C
1/2'
HYS0.75X110T18/16 0.78 110 1.05 0.049 0.007 8 <0.15
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.75X110T18/16 0.78 110 1.25 0.041 0.008 9.5 <0.15
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.75X110T18/16 0.78 110 1.55 0.033 0.01 11.8 <0.15
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.75X110T18/16 0.78 110 2.05 0.025 0.013 15.6 <0.15
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.75X110T18/16 0.78 110 3.02 0.017 0.02 22.9 <0.15
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.8X68T18/16 0.8 70 1.22 0.041 0.008 9.8 <0.1
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.8X70T18/16 0.8 70 1.39 0.036 0.009 11.1 <0.023
0.1
 96 21.5 34.5
18/16
18/16
C
1/3'
HYS0.8X70T18/16 0.8 70 1.85 0.027 0.012 14.8 <0.023
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS0.8X68T18/16 0.8 70 3 0.017 0.02 24 <0.1
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.8X110T18/16 0.8 111 3 0.017 0.02 24 <0.2
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS0.8X120T18 0.8 120 1.16 0.043 0.008 9.3 <0.2
0.1
 86.3 34 12.3
16
18
C
1/3'
HYS0.8X135T18 0.8 135 1.02 0.049 0.007 8.2 <0.25
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS0.8X135T18 0.8 135 2.94 0.017 0.02 23.5 <0.25
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS0.8X160T18 0.8 160 1.52 0.033 0.01 12.1 <0.5
0.1
 89.4 37.1 12.3
20
18
C
1/2'
HYS0.8X180T18 0.8 180 2 0.025 0.013 16 <0.5
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS0.8X235T18 0.8 235 2 0.025 0.013 16 0.6
0.1
 89.4 37.1 12.3
20
18
C
1/2'
HYS0.8X270T18 0.8 270 3.13 0.016 0.021 25 <0.3
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1X40T18/16 1 40 1.21 0.033 0.01 15.2 0.35
0.1
 105.1 37.1 28
20
18/16
C
1/2'
HYS1X68T18/16 1 68 1.6 0.025 0.013 20 <0.27
0.1
 111.6 37.1 34.5
20
18/16
C
2/3'
HYS1.2X69T18/16 1.2 69 1.08 0.031 0.011 19.4 <0.4
0.1
 102 34 28
16
18/16
C
1/2'
HYS1X70T18/16 1 70 0.75 0.053 0.006 9.4 <0.14
0.1
 96 21.5 34.5
18/16
18/16
C
1/2.5'
HYS1X70T18/16 1 70 1.29 0.031 0.011 16.1 <0.14
0.1
 96 21.5 34.5
18/16
18/16
C
1/2.5'
HYS1X110T18/16 1 106 0.89 0.045 0.007 11.1 <0.13
0.1
 96 21.5 34.5
18/16
18/16
C
1/3'
HYS1X110T18/16 1 106 3 0.027 0.012 18.5 <0.13
0.1
 96 21.5 34.5
18/16
18/16
C
1/3'
HYS1X118T18/16 1 116 0.82 0.049 0.007 10.2 <0.2
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS1X118T18/16 1 116 2.35 0.017 0.02 29.4 <0.2
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS1X150T18 1 150 1.21 0.033 0.01 15.2 <0.3
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1.2X155T18 1.2 155 1.01 0.033 0.01 18.2 <0.6
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1X160T18 1 160 1.6 0.025 0.013 20 <0.3
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1X180T18 1 180 1.6 0.025 0.013 20 <0.68
0.1
 92.1 37.1 15
20
18
C
1/2'
HYS1X210T18 1 210 1.25 0.032 0.01 15.6 <0.5
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1X218T18/16 1 218 2.11 0.019 0.018 26.3 <0.53
0.1
 89.5 21.5 28
18/16
18/16
C
1/2'
HYS1X220T18 1 220 1.21 0.033 0.01 15.2 <0.54
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1.35X246T18/16 1.35 246 1.48 0.02 0.017 33.8 <0.25
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS1X400T18 1 400 2.5 0.016 0.021 31.3 <0.36
0.1
 132.1 36.5 55.6
20
18
C
1/2'
HYS1.2X50T18 1.2 50 0.71 0.047 0.007 12.8 <0.3
0.1
 58.8 6.5 12.3
16
18
C
1/2'
HYS1.2X110T18/16 1.2 108 1.01 0.033 0.01 18.2 <0.3
0.1
 120.9 37.1 43.8
20
18/16
C
1/2'
HYS1.2X160T18 1.2 160 0.81 0.041 0.008 14.6 <0.3
0.1
 96.6 37.1 19.5
20
18
C
1/2'
HYS1.2X85T18/16 1.25 82 0.62 0.052 0.006 12 <0.2
0.1
 89.5 21.5 28
18/16
18/16
C
1/2'
HYS1.2X85T18/16 1.25 82 1.03 0.031 0.011 20.2 <0.2
0.1
 89.5 21.5 28
18/16
18/16
C
1/2'
HYS1.4X140T18/16 1.39 140 0.12 0.25 0.001 2.8 <0.23
0.1
 111.6 37.1 34.5
20
18/16
C
1/2'
HYS1.5X32T18 1.5 32 0.65 0.041 0.008 18.3 <0.1
0.1
 139.1 37.1 62
20
18
C
2/3'
HYS1.5X68T18/16 1.5 68 0.81 0.033 0.01 22.7 <0.29
0.1
 120.9 37.1 43.8
20
18/16
C
1/2'
HYS1.5X105T18 1.5 104 0.62 0.043 0.008 17.4 <0.5
0.1
 81 21.5 19.5
18/16
18
C
1/2'
HYS1.5X105T18 1.5 104 0.86 0.031 0.011 24.2 <0.5
0.1
 81 21.5 19.5
18/16
18
C
1/2'
HYS1.5X108T18/16 1.5 108 0.65 0.041 0.008 18.3 <0.36
0.1
 120.9 37.1 43.8
20
18/16
C
2/3'
HYS1.5X110T18/16 1.5 111 0.86 0.031 0.011 24.2 <0.26
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS1.5X135T18/16 1.5 135 0.89 0.03 0.011 25 <0.3
0.1
 89.5 21.5 28
18/16
18/16
C
1/2'
HYS1.5X150T 1.5 150 0.86 0.031 0.011 24.2 <0.5
0.1
 81 21.5 19.5
18/16
18
C
1/2'
HYS1.5X180T18/16 1.5 180 0.81 0.033 0.01 22.7 <0.3
0.1
 111.6 37.1 34.5
20
18/16
C
2/3'
HYS1.5X75T18/16 1.52 76 0.64 0.041 0.008 18.5 <0.1
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS1.5X75T18/16 1.52 76 0.85 0.031 0.011 24.5 <0.1
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS1.5X75T18/16 1.52 76 1.25 0.021 0.016 36.2 <0.1
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS1.8X195T18 1.8 195 0.67 0.033 0.01 27.3 <0.3
0.1
 132.7 37.1 55.6
20
18
C
2/3'
HYS2X69T18 1.9 70 0.4 0.053 0.006 17.9 <0.14
0.1
 123.5 21.5 62
18/16
18
C
2/3'
HYS2X69T18 1.9 70 0.68 0.031 0.011 30.6 <0.14
0.1
 123.5 21.5 62
18/16
18
C
2/3'
HYS2X45T18/16 2 45 0.42 0.048 0.007 20.8 <0.15
0.1
 81 6.5 34.5
16
18/16
C
1/2'
HYS2X68T20 2 68 0.61 0.033 0.01 30.7 <0.15
0.1
 147.7 37.1 70.6
20
18
C
1/2'
HYS2X70T18 2 70 0.41 0.048 0.007 20.7 <0.39
0.1
 66 6.5 19.5
16
18
C
1/2'
HYS2X85T18/16 2 85 0.47 0.043 0.008 23.3 <0.4
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS2X110T18/16 2 110 0.48 0.042 0.008 23.8 <0.27
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS2X110T18/16 2 110 0.65 0.031 0.011 32.3 <0.32
0.1
 102 34 28
16
18/16
C
1/2'
HYS2X110T18/16 2 110 0.65 0.031 0.011 32.3 <0.27
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS2X118T18/16 2 118 0.44 0.041 0.007 22 <0.35
0.1
 120.9 37.1 43.8
20
18/16
C
2/3'
HYS2X130T18/16 2 130 0.48 0.042 0.008 23.8 <0.24
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS2X150T18/16 2 150 0.65 0.031 0.011 32.3 <0.32
0.1
 96 21.5 34.5
18/16
18/16
C
1/3'
HYS2X152T18/16 2 152 0.49 0.041 0.008 24.4 <0.42
0.1
 120.9 37.1 43.8
20
18/16
C
2/3'
HYS2X180T18/16 2 180 0.49 0.041 0.008 24.4 <0.29
0.1
 111.6 37.1 34.5
20
18/16
C
2/3'
HYS2X200T18/16 2 200 0.61 0.033 0.01 30.3 <0.33
0.1
 120.9 37.1 43.8
20
18/16
C
2/3'
HYS2X160T18/16 2.1 160 0.46 0.041 0.008 25.6 <0.29
0.1
 111.6 37.1 34.5
20
18/16
C
2/3'
HYS2X220T18 2.1 220 0.58 0.033 0.01 31.8 <0.25
0.1
 139.1 37.1 62
20
18
C
1/2'
HYS2.2X60T18/16 2.18 60 0.57 0.032 0.01 34.1 <0.26
0.1
 89.5 21.5 28
18/16
18/16
C
1/2'
HYS2.5X110T18/16 2.3 110 0.4 0.043 0.008 26.7 <0.25
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS2.5X110T18/16 2.3 110 0.56 0.031 0.011 37.1 <0.25
0.1
 105.3 21.5 43.8
18/16
18/16
C
1/2'
HYS2.4X43T18/16 2.4 43 0.35 0.048 0.007 25 <0.12
0.1
 90.3 6.5 43.8
16
18/16
C
1/2'
HYS2.5X68T18/16 2.5 68 0.33 0.048 0.007 25.8 <0.23
0.1
 81 6.5 34.5
16
18/16
C
1/2'
HYS3X68T18/16 3 68 0.28 0.048 0.007 31 <0.17
0.1
 90.3 6.5 43.8
16
18/16
C
1/2'
HYS3X110T18/16 3 110 0.31 0.043 0.008 34.9 <0.14
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS3X110T18/16 3 110 0.43 0.031 0.011 48.4 <0.14
0.1
 96 21.5 34.5
18/16
18/16
C
1/2'
HYS4X60T18/16 4 60 0.2 0.049 0.007 40.8 <0.15
0.1
 81 6.5 34.5
16
18/16
C
1/2'
HYS4X68T18/16 4 68 0.21 0.048 0.007 41.3 <0.18
0.1
 90.3 6.5 43.8
16
18/16
C
1/2'
HYS4X110T18 4 110 0.23 0.043 0.008 46.5 <0.32
0.1
 123.5 21.5 62
18/16
18
C
1’
HYS4X110T18 4 110 0.32 0.031 0.011 64.5 <0.13
0.1
 123.5 21.5 62
18/16
18
C
1/2'
HYS5X65T18 5 65 0.16 0.049 0.007 51 <0.08
0.1
 108.5 6.5 62
16
18
C
1/2'
HYS5X68T18 5 68 0.17 0.048 0.007 51.7 <0.18
0.1
 108.5 6.5 62
16
18
C
1/2'
HYS6X68T18 6 68 0.14 0.048 0.007 62 <0.07
0.1
 126.4 6.5 79.9
16
18
C
1/2'
