CPD.10.M200B Infinity Plan Binocular microscope
Description and Notes

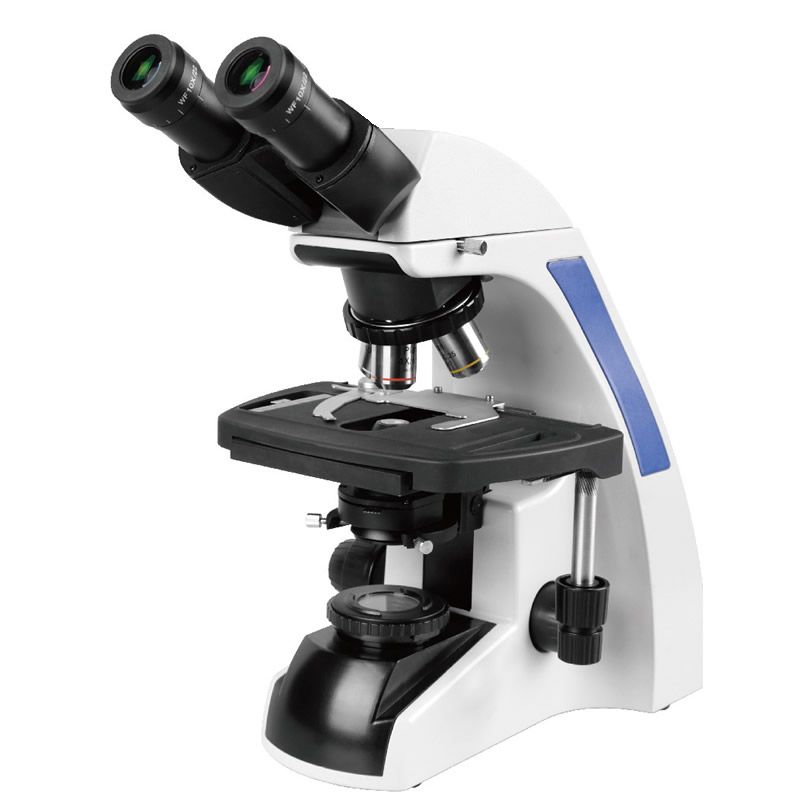

CPD.10.M200B Infinity Plan Binocular Microscope

This scope has high quality infinity optical system, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful apperance. It achieves the notionof ergonomics design, so it can provides the more comfortable operation and operational room. It can be used in the field of the biology, medicine, industry, agriculture, also as ideal tools in hospital, teaching and academy field.

--Infinity Optical System
--Binocular And Trinocular Head Available, Interpupillary Distance 48~75mm
--Both Eyepiece Tube Diopter Adjustable
--Wide Field Eyepiece WF10X/F.N.22mm
--Infinite High Contrast Chromatic-free Full Plan Objectives
--Large Size Mechanical Stage 216x150mm , Graphite Surface, Moving Range75mmx55mm
--External Illumination, 3W/LED
Specification

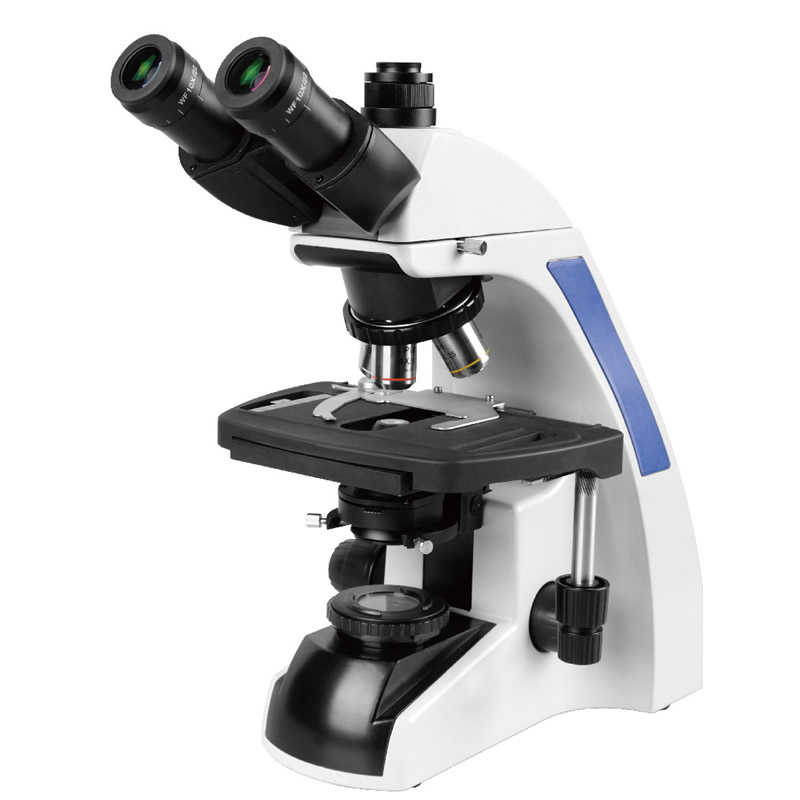

Model CPD.10.M200B CPD.10.M200T
Viewing Head Binocular, Inclined at 30o, Interpupillary 48-75mm, Both Eyepiece Tube Diopter Adjustable
●
-
Trinocular, Inclined at 30o, Interpupillary 48-75mm, Both Eyepiece Tube Diopter Adjustable
-
●
Eyepiece WF10X/F.N.22mm Wide Field Eyepiece
●
●
WF16X/F.N.15mm Wide Field Eyepiece
O
O
WF20X/F.N.12mm Wide Field Eyepiece
O
O
Nosepiece Backward Quadruple Nosepiece
●
●
Backward Quintuple Nosepiece
O
O
Infinite High Contrast Chromatic-free Full Plan 4X /0.10 WD=20.51mm
●
●
10X /0.25 WD=14.5mm
●
●
20X/0.4 WD=2.2mm
O
O
40X/0.65 WD=0.98mm
●
●
100X/1.25 WD=0.30mm
●
●
Condenser Abbe Condensor NA1.25
●
●
Focusing System Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm
●
●
Rackless Stage Rackless Double Layer Mechanical Stage 216x150mm , Graphite Surface, Moving Range75mmx55mm
●
●
Kohler Illumination External Illumination, 3W/LED
●
●
CCD Adapter 1X CCD adapter
-
●
Other Optional Accessories
Optional Accessory Seidentopf Trinocular Viewing Head
0.5X C Mount 0.5X
Dark Field Attachment
Phase Contrast Attachment
