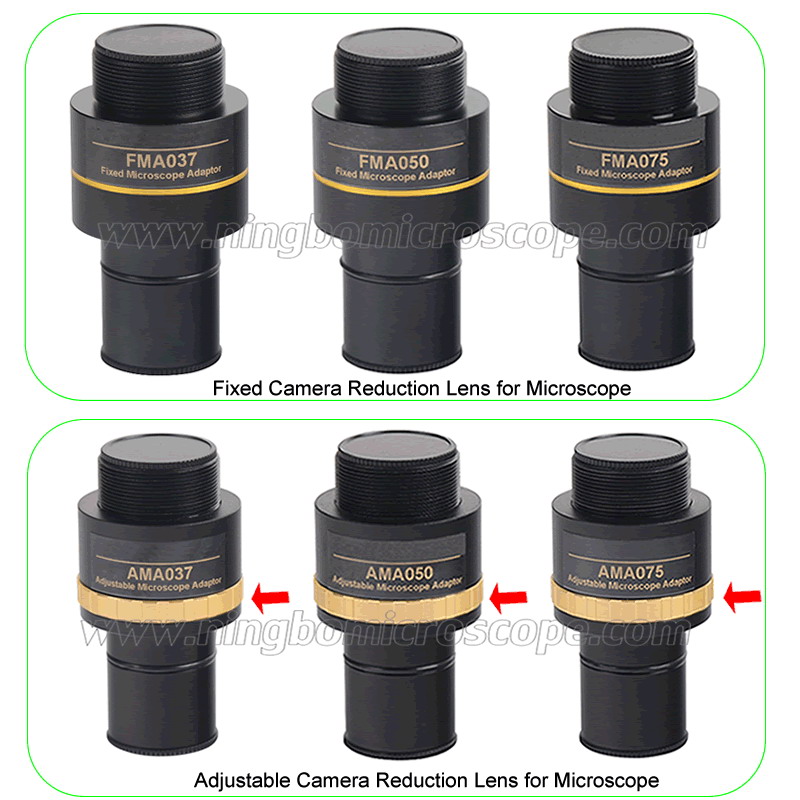

ADA.17.FMA 0.37x/0.5x/0/75X Fixed Camera Reduction Lens for Microscope
Description and Notes
ADA. 17.FMA Fixed Camera Reduction Lens for Microscope
FEATURES
Fixed Microscope Adapter
With 0.37X,0.50X,0.75X 1XMagnification
Standard Inserting Diam is 23.2mm for Tube Size, If you need to use it for 30mm or 30.5mm Diam eyepiece tube,
you have to order a transfer adapter 23.2mm to 30mm or 23.2mm to 30.5mm
31.75mm Inserting Diameter for Telescope is Optional
Specification
Fixed Camera Reduction Lens for Microscope
Order No. Size of Field of View Compatible Sensor
ADA.17.FMA037 18X0.37=6.7 1> Fit to 1/4” ~ 1/3” size sensor
2> 0.37X magnification
3> Fixed focal length
4>C-mount to Dia.23.2mm eye tube
ADA.17.FMA050 18X0.50=9 1> Fit to 1/2” ~ 1/3” size sensor
2> 0.50X magnification
3> Fixed focal length
4>C-mount to Dia.23.2mm eye tube
ADA.17.FMA075 18X0.75=12 1>Fit to 1/1.8” ~ 1” size sensor
2> 0.75X magnification
3> Fixed focal length
4>C-mount to Dia.23.2mm eye tube
ADA.17.FMA100 18X1=18 1>Fit to 1/1.8” ~ 1” size sensor
2> 1X magnification
3> Fixed focal length
4>C-mount to Dia.23.2mm eye tube

Related Adjustable Camera Reduction Lens for Microscope
Adjustable Camera Reduction Lens for Microscope
Order No. Size of Field of View Compatible Sensor
ADA.17.AMA037 18X0.37=6.7 1> Fit to 1/4” ~ 1/3” size sensor
2> 0.37X magnification
3> Manually focusable
4> Parfocal with the eyepiece
5> C-mount to Dia.23.2mm eye tube
ADA.17.AMA050 18X0.50=9 1> Fit to 1/2” ~ 1/3” size sensor
2> 0.50X magnification
3> Manually focusable
4> Parfocal with the eyepiece
5> C-mount to Dia.23.2mm eye tube
ADA.17.AMA075 18X0.75=12 1>Fit to 1/1.8” ~ 1” size sensor
2> 0.75X magnification
3> Manually focusable
4> Parfocal with the eyepiece
5> C-mount to Dia.23.2mm eye tube
ADA.17.AMA100 18X1=18 1>Fit to 1/1.8” ~ 1” size sensor
2> 1X magnification
3> Manually focusable
4> Parfocal with the eyepiece
5> C-mount to Dia.23.2mm eye tube
